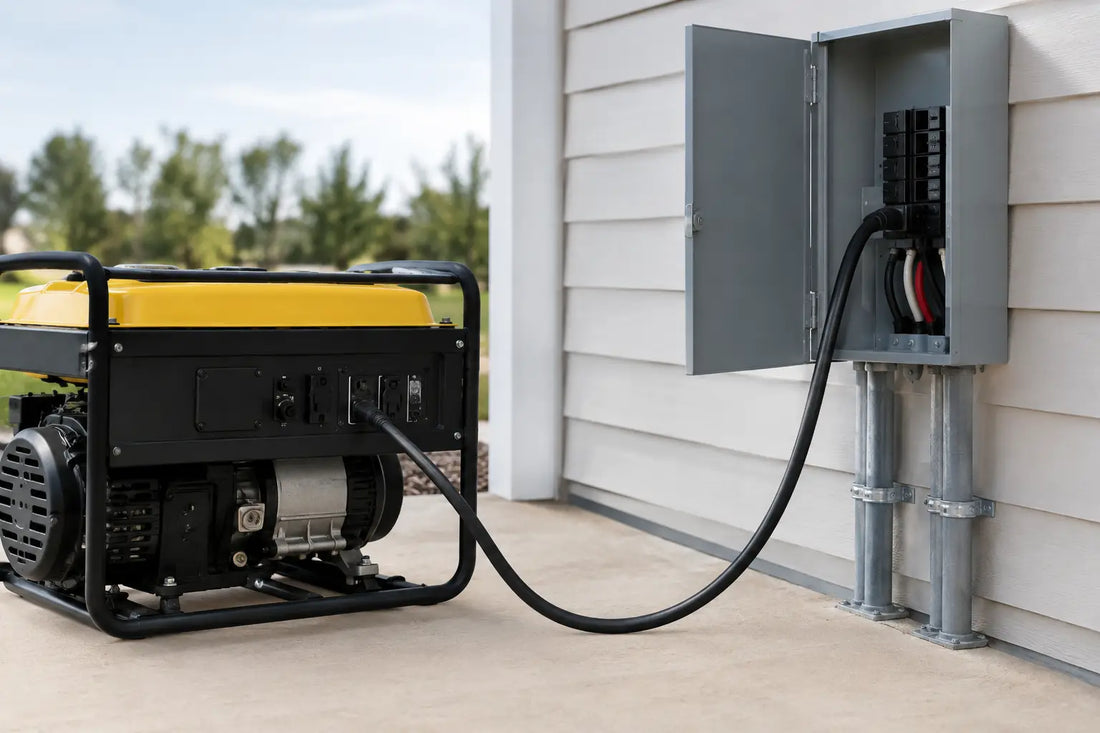

A generator is only useful to a home or job site when its power can reach the right circuits safely. This generator transfer switch compatibility guide covers the specifications that must line up before you connect a portable generator to an electrical panel. Wattage matters, but so do voltage, receptacle type, inlet rating, neutral configuration, and the circuits you expect to run.
A transfer switch is not an adapter that makes every generator fit every building. It is safety equipment that isolates generator power from the utility supply. The right match protects utility workers, prevents equipment damage, and gives you controlled access to essential loads during an outage.
Start With Your Generator Output
Read the generator's data plate and owner's manual before selecting a transfer switch. The key question is whether the unit produces 120/240V split-phase power or 120V power only.
Most conventional portable generators in the 5,000 to 12,000-watt class provide 120/240V output. These models can support a properly configured home transfer switch that supplies both legs of a residential panel. They can run 120V loads such as refrigerators, lights, sump pumps, and furnace blowers, while also making 240V loads possible if generator capacity allows.
Many compact inverter generators and portable power stations are 120V only. They can be excellent for selected 120V circuits, but they cannot operate 240V equipment such as many well pumps, central air conditioners, electric ranges, and large shop tools. A generator may have enough total wattage on paper and still be incompatible with a 120/240V transfer setup if it lacks a 240V output.
Check these generator specifications together:
- Running watts and peak or starting watts
- Output voltage and frequency - usually 120V, 120/240V, and 60Hz in the US
- Generator receptacle type and amperage
- Whether the neutral is bonded or floating
- Whether the generator has GFCI-protected outlets or inverter output controls
Generator Transfer Switch Compatibility by Amperage
The transfer switch, power inlet box, cord, generator outlet, and circuit breaker must be rated as one system. The lowest-rated component sets the usable limit.
A 30-amp, 120/240V connection can deliver up to 7,200 watts under ideal conditions. In real use, the generator's continuous output rating is the number to respect. A generator rated for 5,500 running watts should be managed as a 5,500-watt source even if it has a 30-amp outlet and a higher surge rating.
A 50-amp, 120/240V connection can support more capacity, but it does not automatically mean you can draw 12,000 watts. A 50-amp inlet paired with an 8,000-watt generator is still limited by the generator. On the other hand, installing a 30-amp transfer switch with a 50-amp generator limits the usable connection to 30 amps unless the entire system is upgraded correctly.
Common pairings include a 30-amp locking generator outlet with a 30-amp inlet and transfer switch, or a 50-amp generator outlet with a 50-amp inlet and compatible transfer equipment. Connector style matters as much as amperage. A 30-amp L14-30 connection, for example, is not interchangeable with a 50-amp CS6365-style connection without properly rated, purpose-built equipment.
Do not use improvised adapters to force a higher-amperage generator outlet into a lower-rated inlet. The breaker and wiring must protect the equipment downstream. A qualified electrician can determine whether an adapter is appropriate for a specific listed configuration, but an adapter never increases the rating of the switch, cord, or inlet.
Match the Inlet to the Generator Receptacle
Your outdoor power inlet box should accept the generator cord plug you actually plan to use. This sounds basic, but it prevents a common purchase mistake: buying a 50-amp inlet for a generator that only has a 30-amp 120/240V outlet, then discovering the cord and connectors do not match.
Use a generator cord rated for the full connection amperage and outdoor use. Keep cord length practical. Long undersized cords can cause voltage drop, especially when motors start. For high-demand loads such as pumps, compressors, or refrigeration equipment, voltage drop can lead to hard starts, nuisance trips, and premature motor wear.
Choose the Right Transfer Equipment Type
Manual transfer switches are often the practical choice for portable generators. During an outage, you start the generator, connect the cord, and move selected circuits from utility to generator power. They work well for homeowners who want a clear, controlled essential-load setup without maintaining a permanently installed standby generator.
A panel-mounted interlock kit is another option when it is specifically listed for your exact electrical panel. An interlock mechanically prevents the main breaker and generator backfeed breaker from being on at the same time. It can be more flexible than a small circuit-select transfer switch because you can choose circuits at the main panel, but load management becomes your responsibility.
Automatic transfer switches are generally designed around permanently installed standby generators. Compatibility depends on more than output wattage. The generator may need a two-wire start circuit, appropriate control logic, battery charging capability, and a compatible fuel system. A portable pull-start generator is usually not a practical match for an automatic transfer switch.
Never backfeed a building through a dryer outlet, range outlet, or any receptacle. This can energize utility lines, bypass proper overcurrent protection, damage equipment, and create a serious shock or fire hazard. Use a listed inlet and transfer method installed to local electrical code.
Size Loads Before You Select Circuits
A transfer switch may have room for more circuits than your generator can power. Start by identifying what must stay on during an outage: refrigeration, furnace blower, sump pump, well pump, key lighting, internet equipment, security systems, garage door controls, or a small number of work circuits.
Add the running wattage for the loads you expect to operate at the same time. Then account for starting wattage from motor-driven equipment. A refrigerator or sump pump may need substantially more power for a few seconds when the compressor or motor starts. If several motors start together, even a generator with adequate running watts can overload.
Avoid assigning every convenience load to generator power. Electric water heaters, electric dryers, ranges, baseboard heat, large central HVAC systems, and hot tubs can consume capacity quickly. Some homes can support a well pump and selected 240V loads with a larger generator, but that decision depends on motor size, starting method, generator surge capacity, and what else is operating.
For a 30-amp connection, balanced loading across both 120V legs is also worth considering. A qualified installer can arrange selected circuits so one leg is not carrying nearly all the load. Balanced circuits help you make better use of a 120/240V generator's available output.
Neutral, Grounding, and GFCI Details Matter
Neutral configuration is one of the least visible compatibility issues and one of the most consequential. Portable generators may have a bonded neutral, where neutral and ground are connected inside the generator, or a floating neutral, where they are separate. Transfer switches may switch the neutral conductor or leave it solidly connected.
The correct combination depends on the generator design, the transfer equipment, and the building's grounding system. A mismatch can cause GFCI outlets to trip, create objectionable current paths, or produce unsafe conditions. Do not remove a neutral bond or alter generator wiring to make a system work. Follow the generator and transfer switch instructions, and have a licensed electrician verify the installation.
The same applies to GFCI-protected generators. Some units are designed for job-site outlet protection and may behave differently when connected to a building inlet. Manufacturer documentation and professional installation are the right way to resolve this issue, not trial and error during an outage.
A Practical Compatibility Check Before You Buy
Before ordering equipment, write down the generator model, running watts, voltage, outlet type, outlet amperage, and whether you need 240V loads. Then identify the circuits you want available and their likely running and starting demands. This makes it much easier to compare 30-amp and 50-amp generator-ready options without paying for capacity you cannot use.
PowerGen USA customers often shop generators by wattage, fuel type, and inverter technology first. Add transfer compatibility to that decision early. A dual-fuel generator may give you more outage flexibility, but its transfer connection still has to match the voltage, inlet, cord, breaker, and load plan for your property.
A properly matched transfer switch turns a generator from a temporary power source into a controlled backup system. Plan the connection before the outage, keep the load list realistic, and use a qualified electrician for final equipment selection and installation.
