Cummins QuietConnect™ C100 N6 100KW Liquid-Cooled: RS100 Series - PowerGen USA
Cummins QuietConnect™ C100 N6 100KW Liquid-Cooled: RS100 Series - PowerGen USA
Couldn't load pickup availability
DESCRIPTION
Robust product design and testing - The generator is designed to operate under extreme environmental conditions including cold weather starts at as low as -40ºF. The generator is tested and certified per the latest EPA, UL and IBC Seismic standards and is capable of meeting NFPA110 requirements when equipped with the necessary accessories and properly installed.
Flexible exercise mode - The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer's preference - as little as 2 minutes every 6 months - reducing unnecessary fuel consumption, emissions and noise.

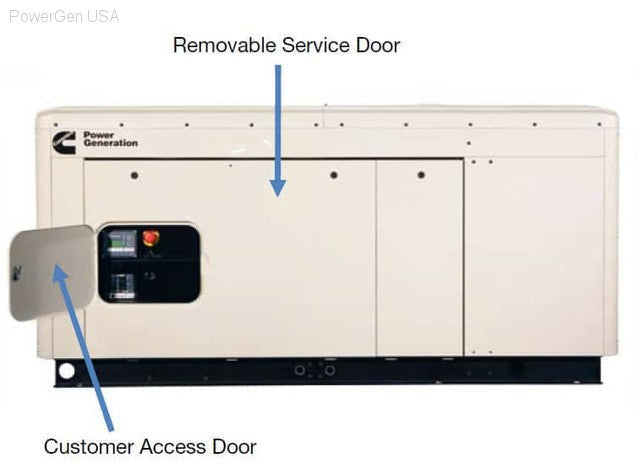

Advanced enclosure design - The aesthetically appealing enclosure incorporates special designs that deliver the quietest generator of its kind. Aluminum material plus durable powder coat paint provides the best anti- corrosion performance. The generator set enclosure has been evaluated to withstand 180 mph wind loads in accordance with ASCE 7-10. The intelligent design has removable panels and service doors to provide easy access for service and maintenance.
Control system - The PowerCommand® electronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection and NFPA 110 level 1 compliance.
Self-diagnostics and easy service - The PowerCommand® electronic control provides industry- leading self-diagnostic capabilities. In addition, critical components of the generator are designed to ensure service and preventive maintenance can be completed in a short period of time.
Weight, size, and sound level
Weight: 2830 lbs. (1284 kg)
Size: Length 118.7 in (3016 mm), width 40.0 in (1016 mm), height 58.3 in (1480 mm)
Sound: 73 dB(A) at 23 ft. (7 m) with sound level 1 enclosure
|
series |
Model |
Phase |
Voltage (V) |
Frequency (Hz) |
Rated amps (NG/LPV fuel) |
Circuit breaker (Amps) |
|
RS100 |
C100 N6 |
1 |
120/240 |
60 |
417/417 |
125-400 |
|
3 |
120/208 |
60 |
347/347 |
125-400 |
||
|
3 |
120/240 |
60 |
301/301 |
125-400 |
||
|
3 |
277/480 |
60 |
150/150 |
200 |
