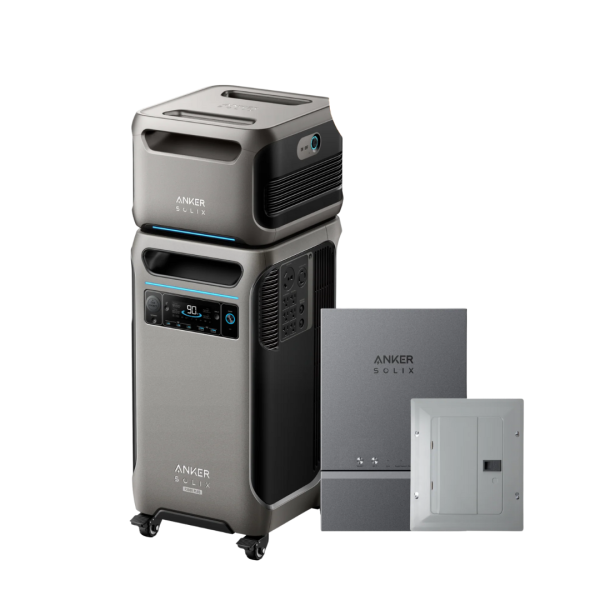

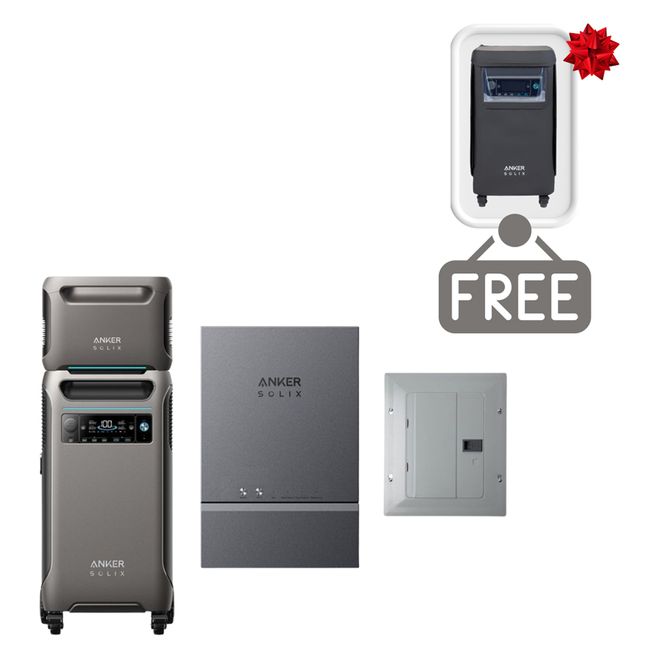

The Anker SOLIX F3800 with Expansion Battery Automatic Home Power Panel Kit features proprietary, long-lasting InfiniPower technology, combined with LiFePO4 batteries, ultra-durable electronic components, a smart temperature control system that monitors temperature up to 100 times per second, and impact-resistant structural design, this compact powerstation is built to last over a decade, even with everyday use. The included automatic transfer switch and subpanel make home connection simple. Automatically switch from grid power to backup power seamlessly in 30ms! Add another PowerStation and a total of 12 Expansion Batteries and Expand up 53.8kWh!
Power Station Features:
| • | Operates at whisper-quiet levels at all times thanks to an internal chip and intelligent AI algorithm, so you barely know it's on. |
| • | Equipped with an informative LED display that lets you clearly see the cell capacity, current input and output, and estimated time for the Anker SOLIX F3800 to fully recharge. |
| • | Easily control the portable power station right from the convenience of your phone. Through a fast and stable Bluetooth connection, you can view charging time, remaining battery, temperature, and customize your power usage - no Wi-Fi required! |
| • | Expand with the user friendly auxiliary expansion batteries and 2 1200W input Solar charge controllers! |
Whole Home Power Supply and Circulation:
| • | Ultra-High 6,000W AC output with 120V/240V, conveniently powers multiple appliances at the same time, power up to 12,000W max AC output with 2 Anker SOLIX F3800s giving complete home energy without limits. |
| General Information | |
| Manufacturer Name: | Anker |
| Dimensions: | 27.6" x 15.1" x 14.6" in (with wheels 2.56") |
| Weight: | 132.30 lbs |
| Operating usage temp: | Charging: -20 to 40C / -4 to 104F Recharging: -0 to 40C / 32 to 104F |
| Warranty: | 5 Year Warranty |
| Battery | |
| Cell Type: | LFP (LiFePO4) Battery |
| Cell Capacity: | 3840Wh |
| Battery Cycles: | 3,000+ (to 80% Capacity) |
| Input | |
| AC Input Power: | 120V - 1800W |
| AC Input Charge Time: | 2.67 Hours |
| # of DC Inputs: | 2 |
| XT60 Input: | XT-60 - 11-32V - 10A; 32V-60V - 25A (1200W Max) |
| Solar Recharge Time | 2 hours (2400W) 3.2 (1200W) |
| Charge Controller Type: | MPPT |
| Solar Panel Max Input Recharge Time | 1.97 Hours |
| Car DC Input: | 120W (32 Hours) |
| Output | |
| Maximum Output: | 6444 Watts |
| Number of Ports: | 14 |
| # of Standard AC Sockets: | 8 |
| Standard AC Rated Power: | 6000W |
| Standard AC Surge Power: | 9000W |
| AC Total Output: | 6000W |
| AC Auto Shut-Off: | Stand By Mode 12 Hours |
| Special AC Socket: | 1x Nema 14-50 (6000W Max, 240V) 1x L14-30 (6000W Max, 240V) |
| # of USB-A Output: | 2 |
| USB-A Rated Power (per port): | 5V - 2.4A (12W Max) |
| USB-A Total Output: | 24W |
| # of USB-C Output: | 3 |
| USB-C Rated Power (per port): | 5V - 3A/9V - 3A/15V - 3A/20V - 3A/20V - 5A (100W Max) |
| USB-C Total Output: | 300W |
| USB auto shut-off: | Yes |
| # of Car Outlet: | 1 |
| Car Outlet Rated Power (per port): | 10.8-14V = 10A (120W Max Per Port) |
| Smart Home Panel | |
| Manufacturer Name: | Anker |
| Wi-Fi: | Supported |
| Input Voltage: | 120/240V |
| Output Voltage: | 240V |
| Max Input Power: | 6,000W |
| Max Output Power: | 12,000W |
| Circuits: | 12 |
| Max Connected Battery Energy: | 53.8KWh |
| IP Code: | 31 |
| Manufacturer Warranty: | 5 Year |
| Anker SOLIX BP3800 Expansion Battery | |
| Manufacturer Name: | Anker |
| Dimensions: | 15.5" x 14.0" x 10.3" in |
| Weight: | 76 lb / 34.5 kg |
| Warranty: | 5 Year Warranty |
| Battery Information | |
| Cell Type: | LFP (LiFePO4) Battery |
| Cell Capacity: | 3840Wh |
| Battery Cycles: | 3,000 |
