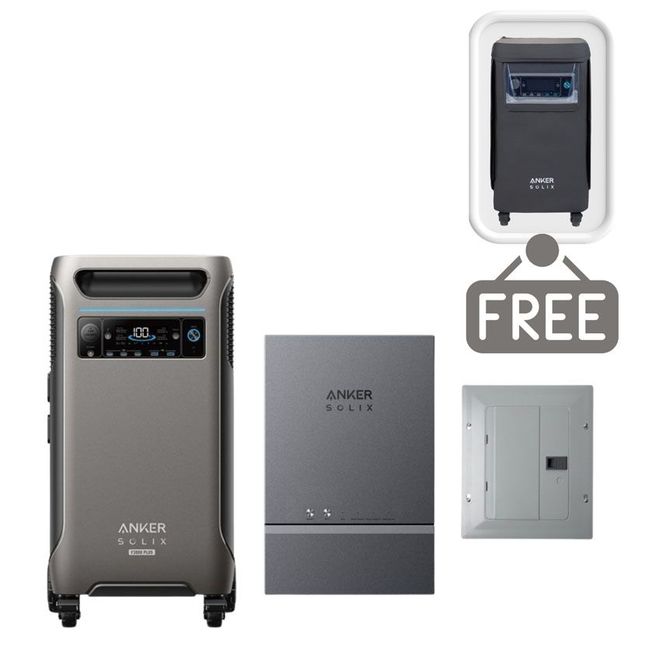

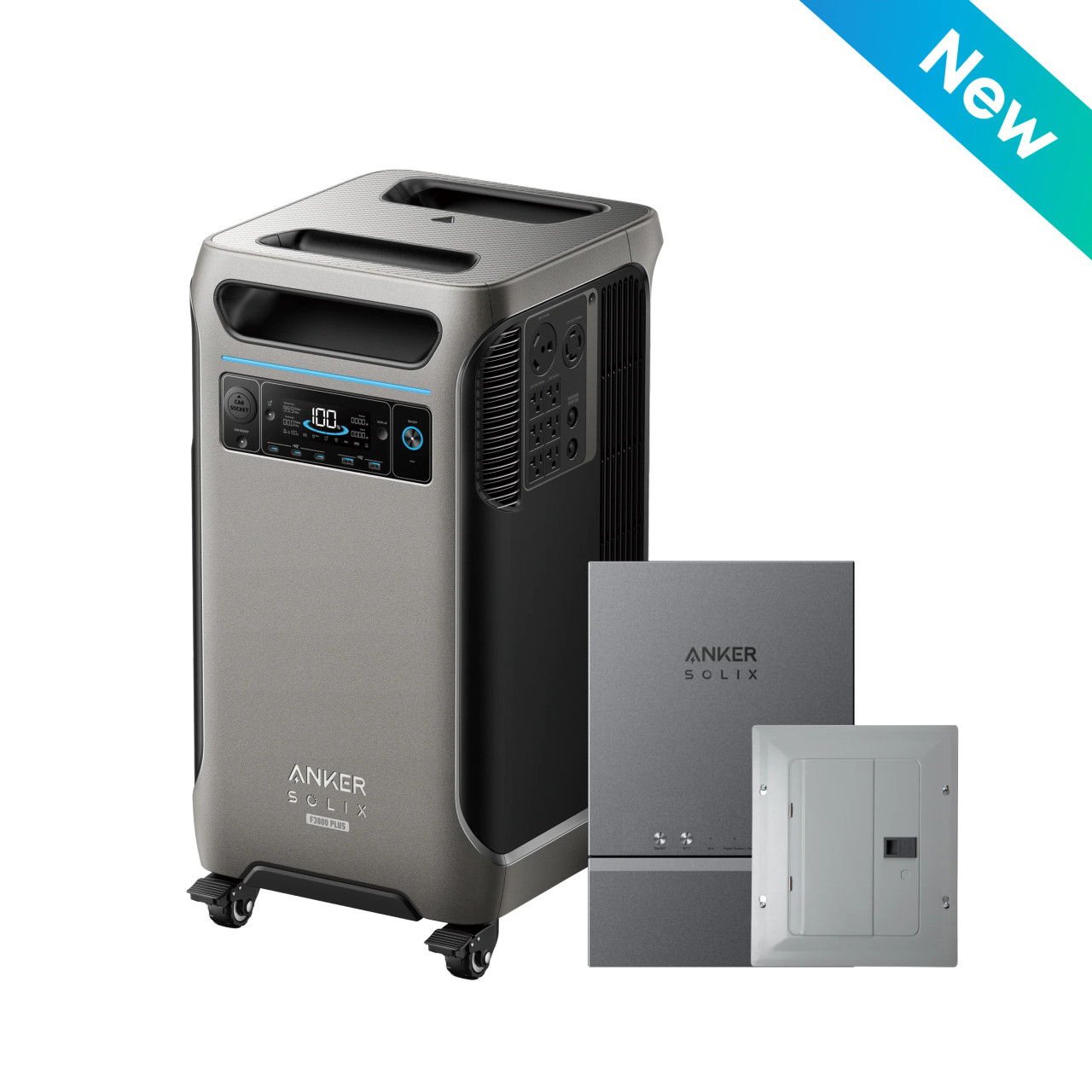

Anker SOLIX F3800 Plus + Automatic Home Power Panel + Sub-panel - Includes FREE Protective Cover
Anker SOLIX F3800 Plus + Automatic Home Power Panel + Sub-panel - Includes FREE Protective Cover
Couldn't load pickup availability
The Anker SOLIX F3800 Plus Automatic Home Power Panel Kit features proprietary, long-lasting InfiniPower technology, combined with LiFePO4 batteries, ultra-durable electronic components, a smart temperature control system that monitors temperature up to 100 times per second, and impact-resistant structural design, this compact powerstation is built to last over a decade, even with everyday use. The included automatic transfer switch and subpanel make home connection simple. Automatically switch from grid power to backup power seamlessly in 30ms! Add another PowerStation and a total of 12 Expansion Batteries and Expand up 53.8kWh!
Power Station Features:
| • | Operates at whisper-quiet levels at all times thanks to an internal chip and intelligent AI algorithm, so you barely know it's on. |
| • | Equipped with an informative LED display that lets you clearly see the cell capacity, current input and output, and estimated time for the Anker SOLIX F3800 Plus to fully recharge. |
| • | Easily control the portable power station right from the convenience of your phone. Through a fast and stable Bluetooth connection, you can view charging time, remaining battery, temperature, and customize your power usage - no Wi-Fi required! |
| • | Expand with the user friendly auxiliary expansion batteries and new and improved 2x 1600W / 165V Solar Input Charge Controllers! |
First Portable Powerstation that Features AC Coupling:
| • | With the Anker SOLIX F3800 Plus and Home Power Panel you can easily connect to your home power system. Its the first portable power station that features AC coupling, so you can just plug into the grid with Home Power Panel and connect your rooftop panels. This allows you to store excess solar energy for when you need it at night or during emergencies. |
Customizable to Maximize Savings on your Energy Bill:
| • | Get full control of your power via the Anker app to max out your savings. You can charge the Anker SOLIX F3800 Plus when the sunlight is strong or via AC when rates are low. Then power your home at night or during high peak hours. |
SPECIFICATIONS
| General Information | |
| Manufacturer Name: | Anker |
| Dimensions: | 27.6" x 15.1" x 14.6" in (with wheels 2.56") |
| Weight: | 132.30 lbs |
| Operating usage temp: | Charging: -20 to 40C / -4 to 104F Recharging: -0 to 40C / 32 to 104F |
| Warranty: | 5 Year Warranty |
| Battery | |
| Cell Type: | LFP (LiFePO4) Battery |
| Cell Capacity: | 3840Wh |
| Battery Cycles: | 3,000+ (to 80% Capacity) |
| Input | |
| AC Input Power: | 120V - 1800W |
| AC Input Charge Time: | 2.67 Hours |
| # of DC Inputs: | 2 |
| Solar Input: | 11-165V - 17A (2x 1,600W Max) |
| Solar Recharge Time | 2 hours (2400W) 3.2 (1200W) |
| Charge Controller Type: | MPPT |
| Solar Panel Max Input Recharge Time | 1.20 Hours |
| Car DC Input: | 120W (32 Hours) |
| Output | |
| Maximum Output: | 6444 Watts |
| Number of Ports: | 14 |
| # of Standard AC Sockets: | 6 |
| Standard AC Rated Power: | 6000W |
| Standard AC Surge Power: | 9000W |
| AC Total Output: | 6000W |
| AC Auto Shut-Off: | Stand By Mode 12 Hours |
| Special AC Socket: | 1x Nema TT-30R (240V) 1x L14-30 (6000W Max, 240V) |
| # of USB-A Output: | 2 |
| USB-A Rated Power (per port): | 5V - 2.4A (12W Max) |
| USB-A Total Output: | 24W |
| # of USB-C Output: | 3 |
| USB-C Rated Power (per port): | 5V - 3A/9V - 3A/15V - 3A/20V - 3A/20V - 5A (100W Max) |
| USB-C Total Output: | 300W |
| USB auto shut-off: | Yes |
| # of Car Outlet: | 1 |
| Car Outlet Rated Power (per port): | 10.8-14V = 10A (120W Max Per Port) |
| 240V Fuel Generator Charging: | Yes |
| Smart Home Panel | |
| Manufacturer Name: | Anker |
| Wi-Fi: | Supported |
| Input Voltage: | 120/240V |
| Output Voltage: | 240V |
| Max Input Power: | 6,000W |
| Max Output Power: | 12,000W |
| Circuits: | 12 |
| Max Connected Battery Energy: | 53.8KWh |
| IP Code: | 31 |
| Manufacturer Warranty: | 5 Year |
