Champion 14kW aXis Home Standby Generator System with 150-Amp aXis Automatic Transfer Switch - PowerGen USA

Champion 14kW aXis Home Standby Generator System with 150-Amp aXis Automatic Transfer Switch - PowerGen USA

Regular price $8,778.00 CAD
Regular price Sale price $8,778.00 CAD
Sale Sold out
Shipping calculated at checkout.

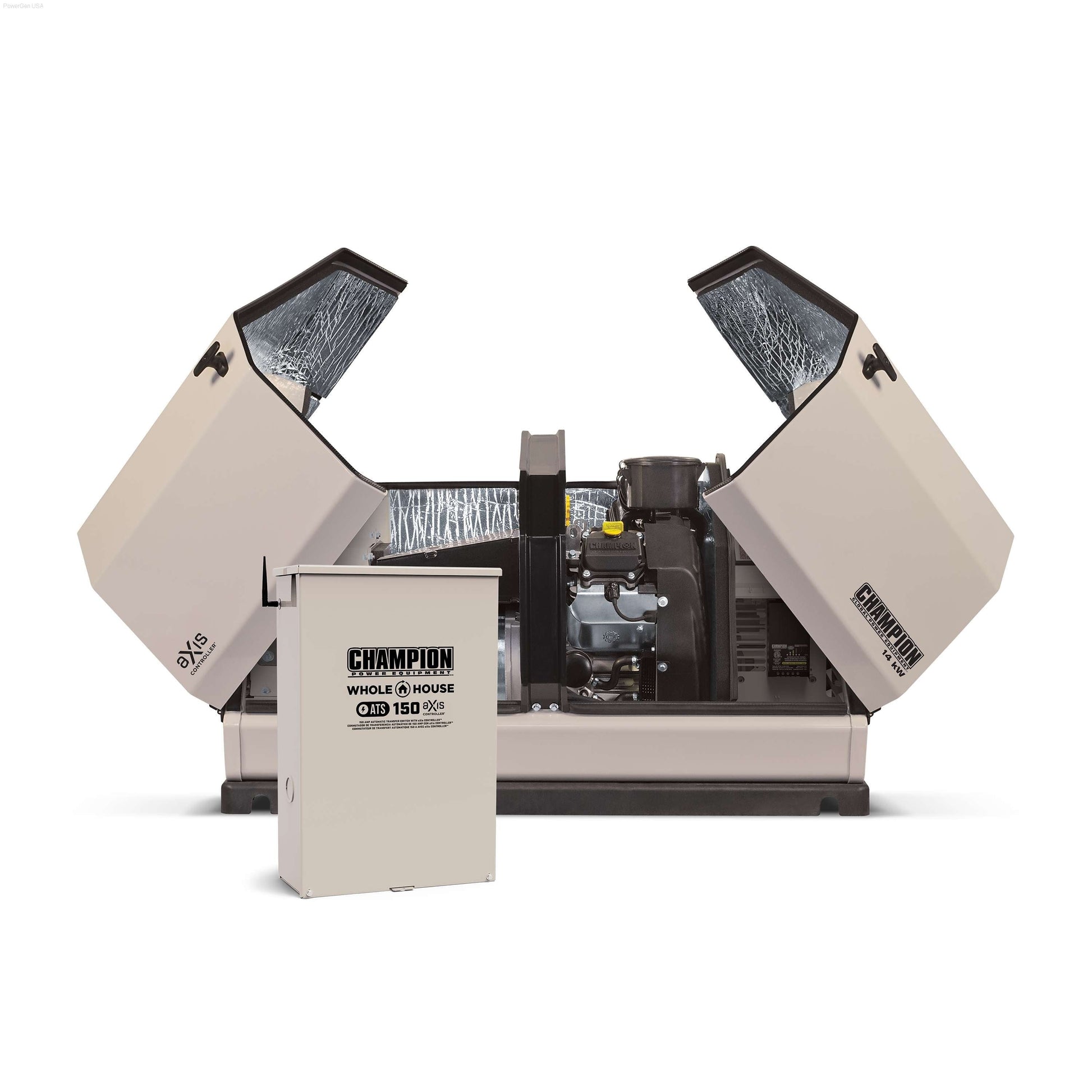

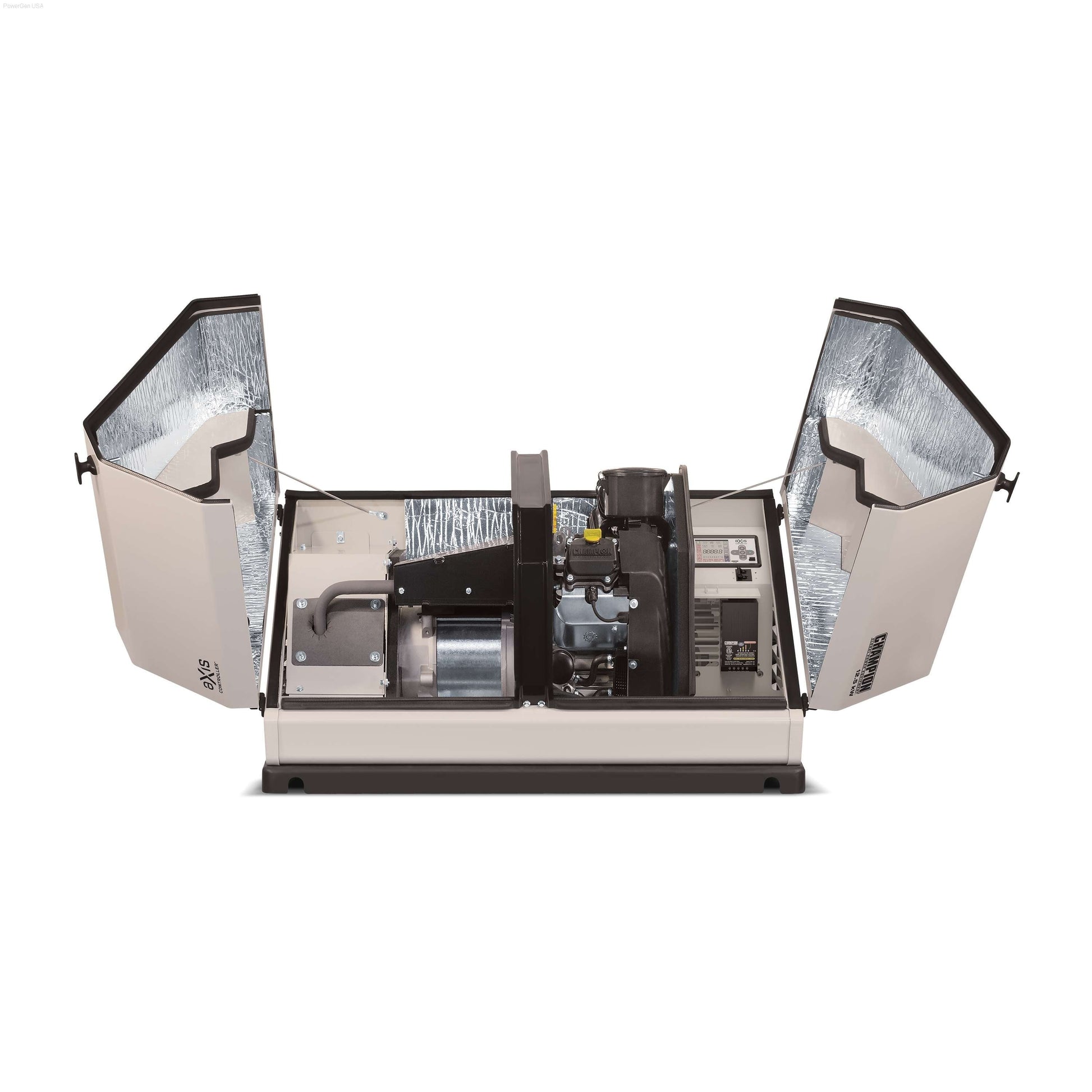

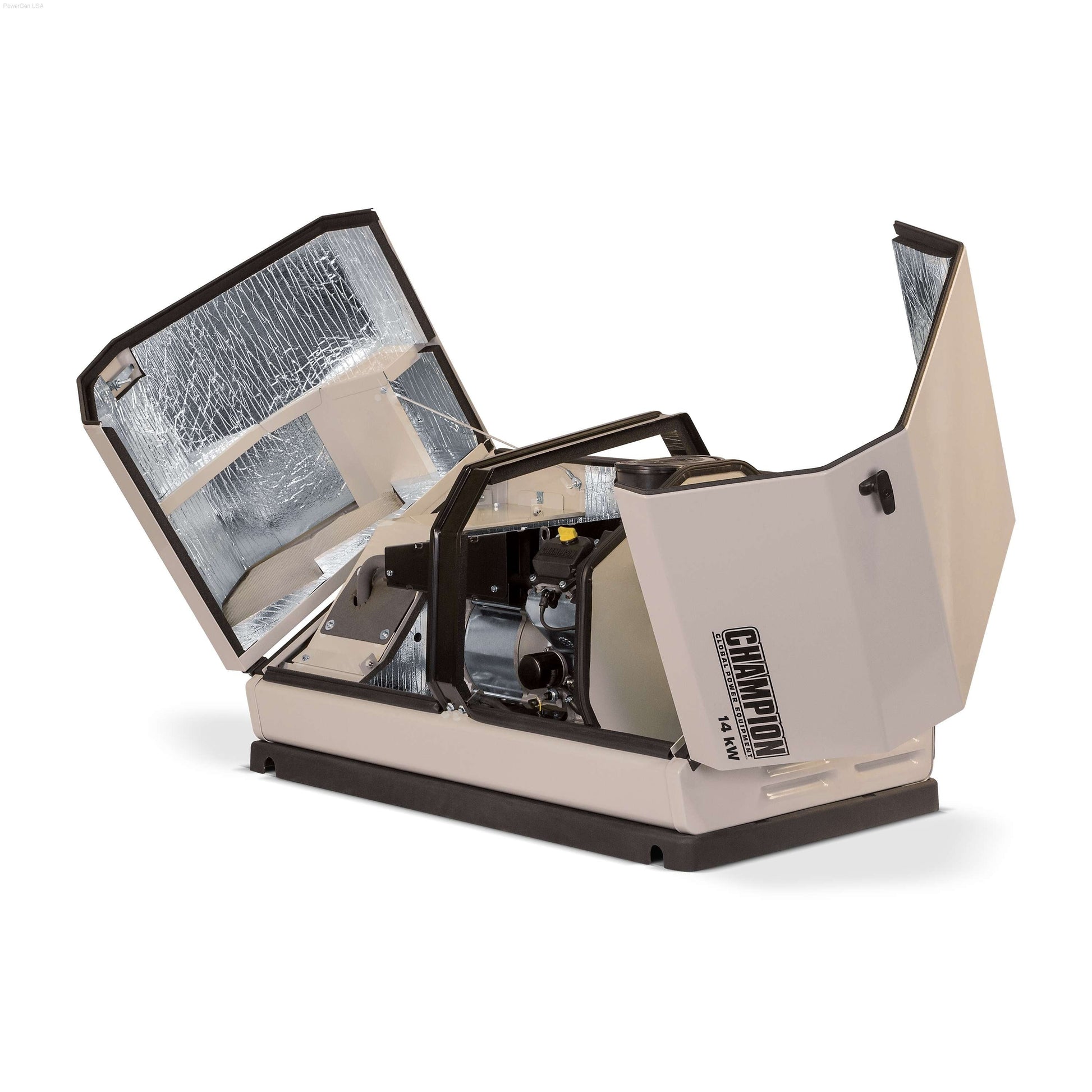

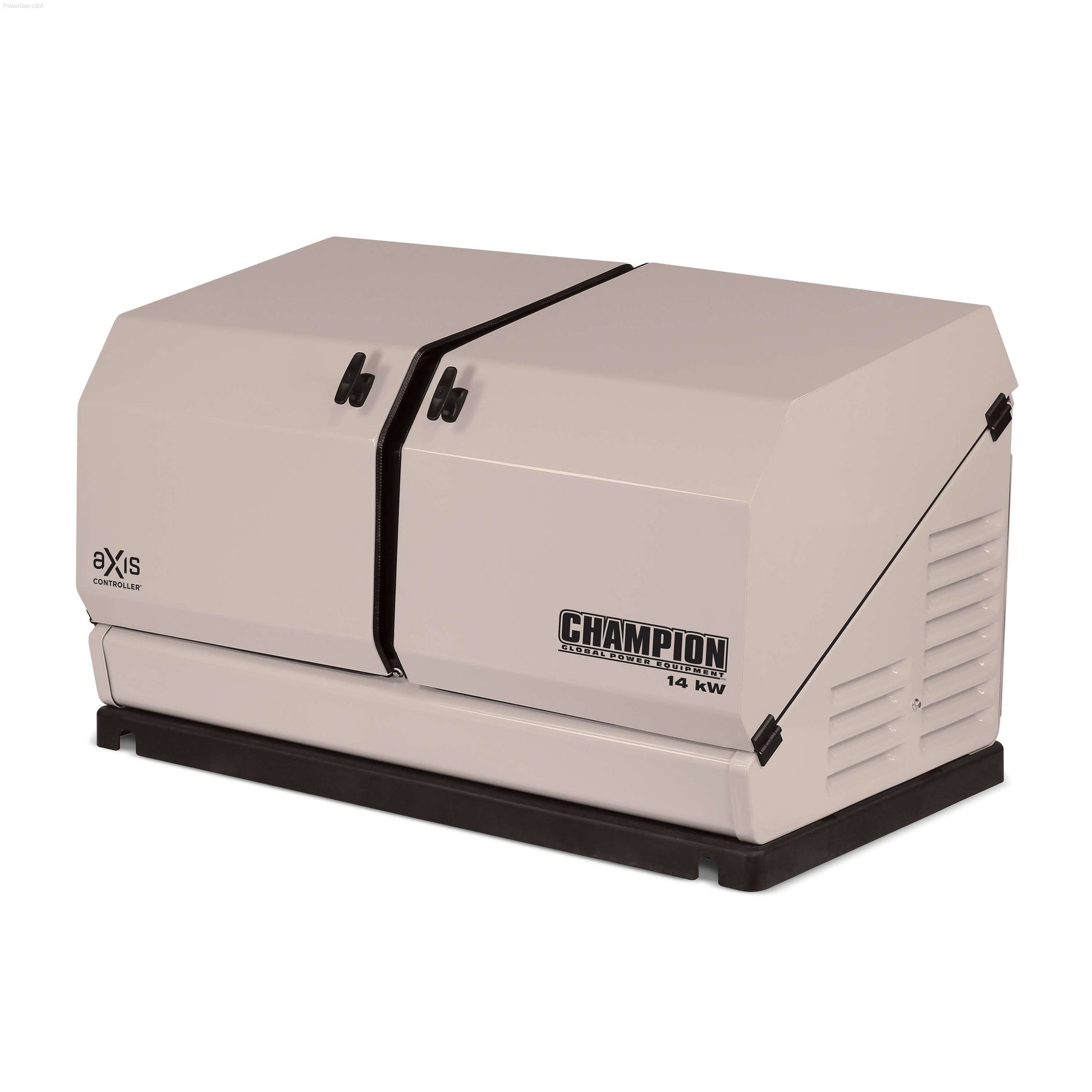

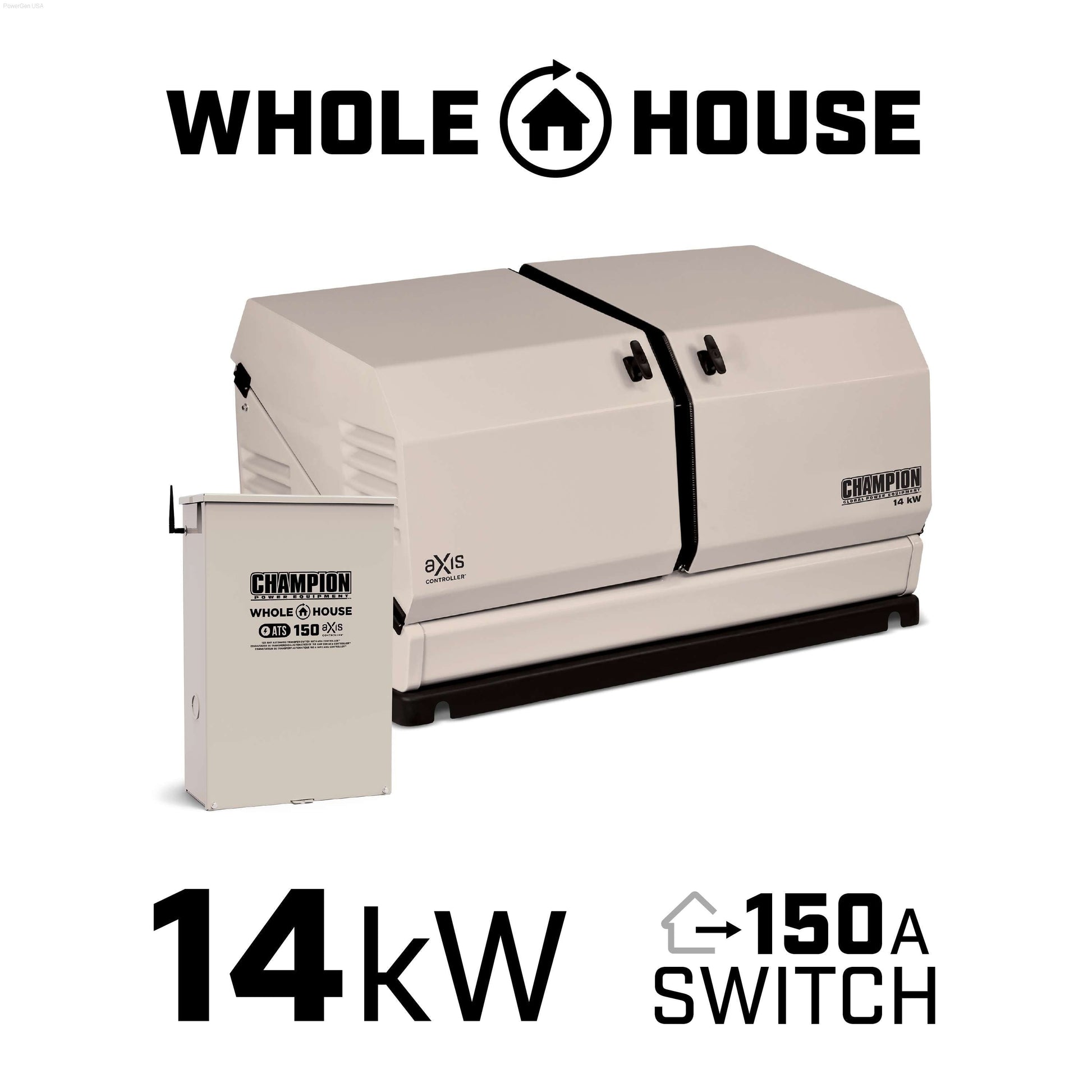

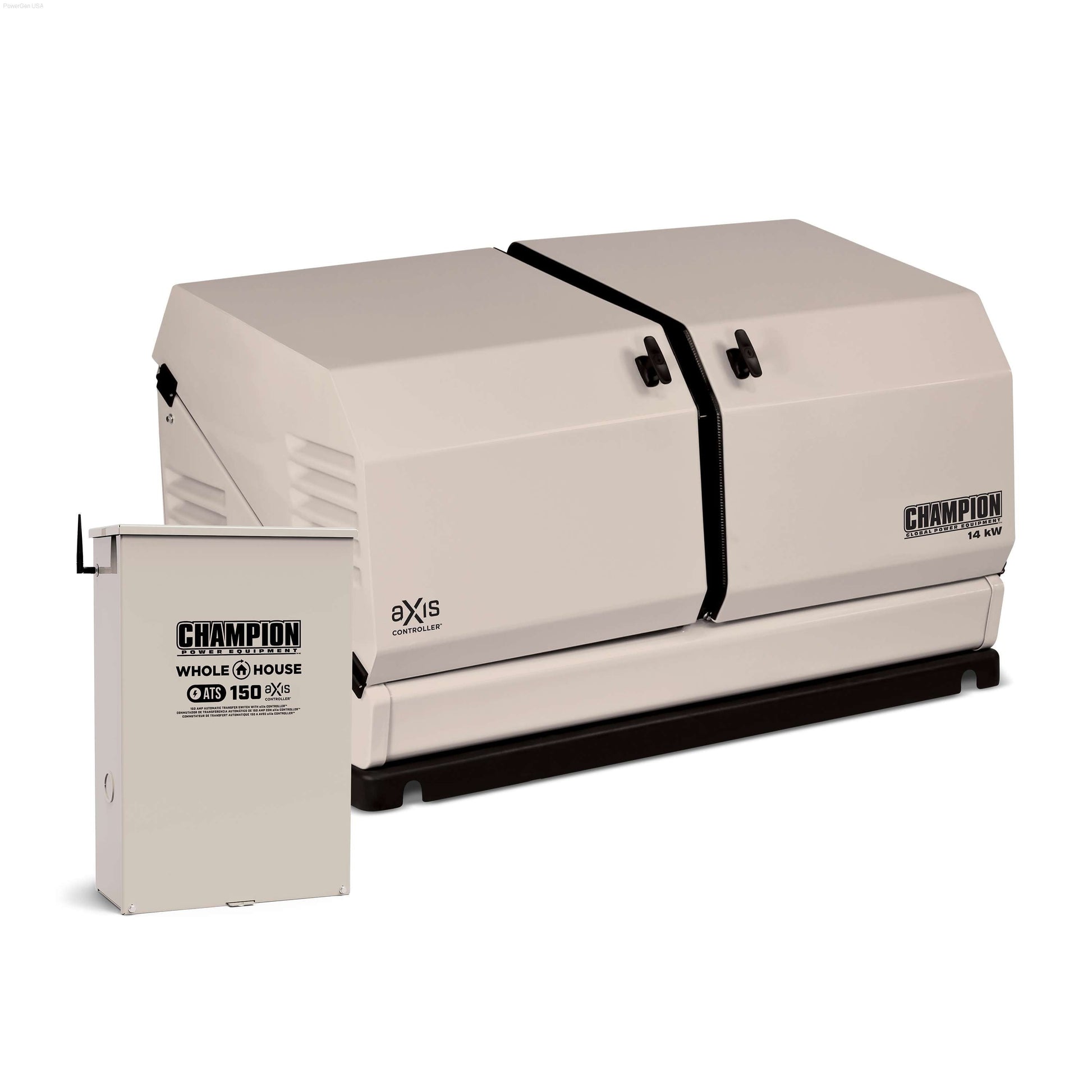

The Champion Power Equipment 100836 Home Standby Generator System includes 14kW aXis Home Standby Generator and 150A aXis ATS Whole House Automatic Transfer Switch.

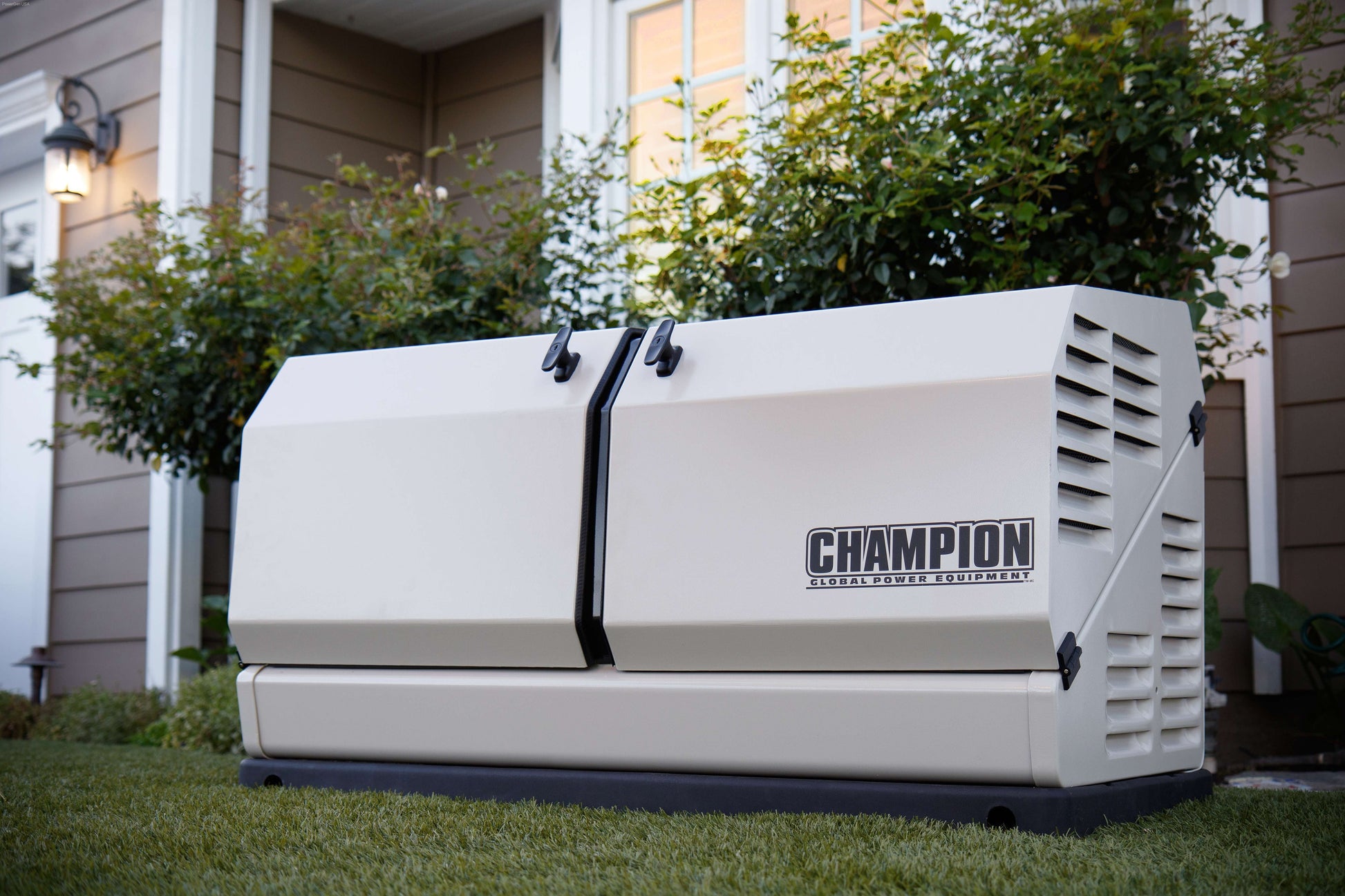

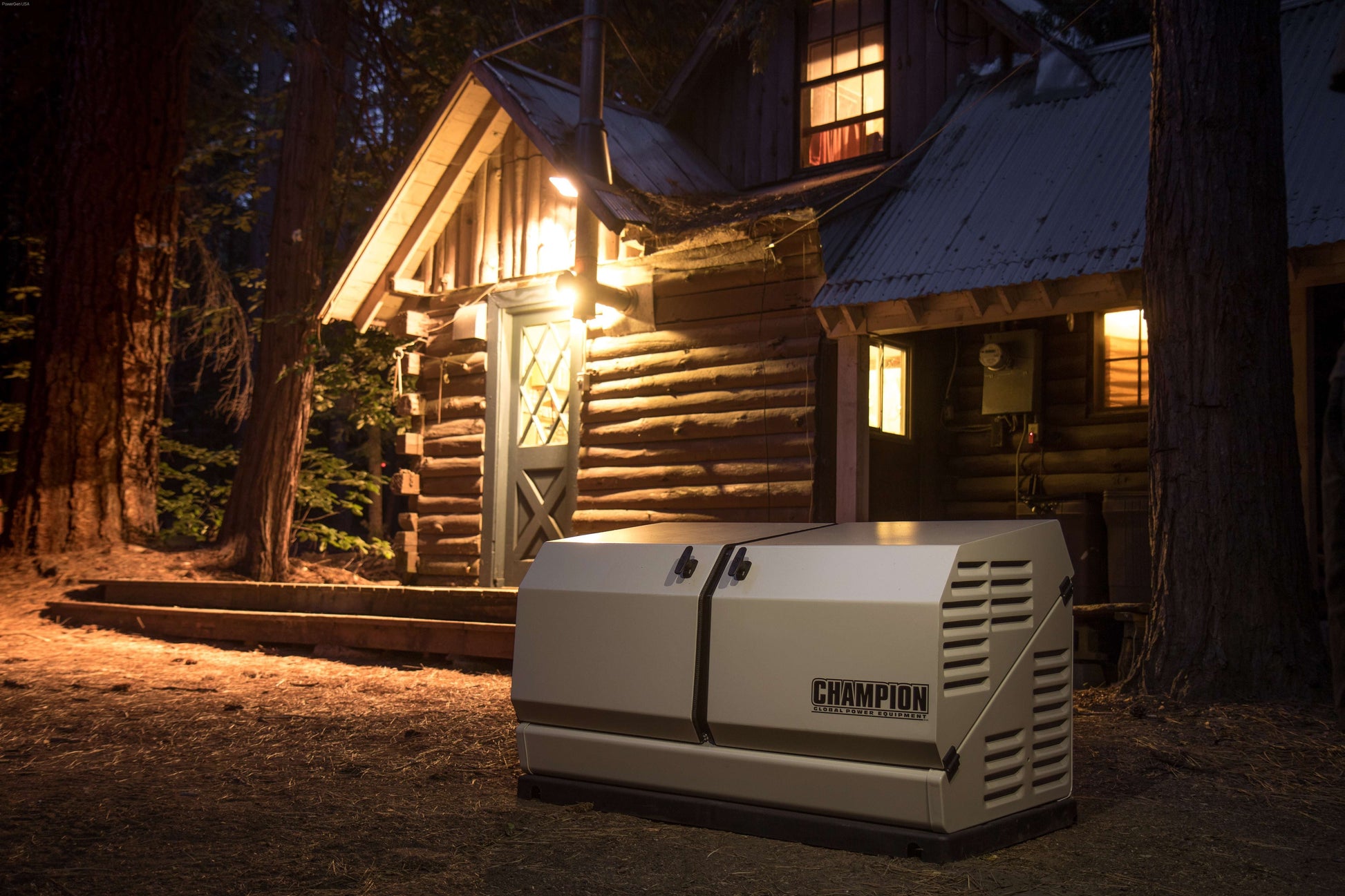

This generator never needs refueling operating on your home’s NG or LP fuel supply, starts automatically when utility power goes out, and turns off automatically when utility power is restored. The battery keeps a charge and operates in temperatures ranging from -22° to 104° F.

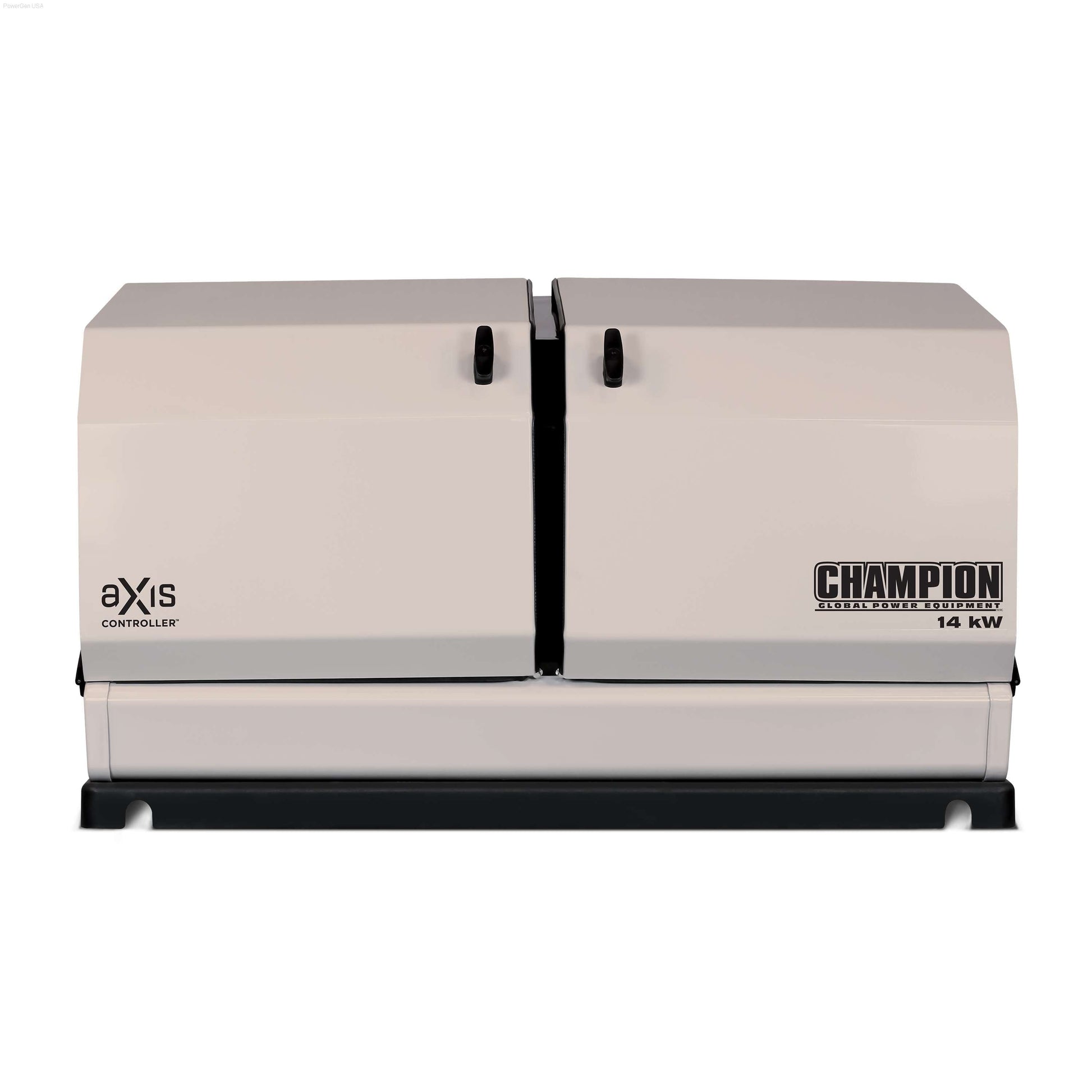

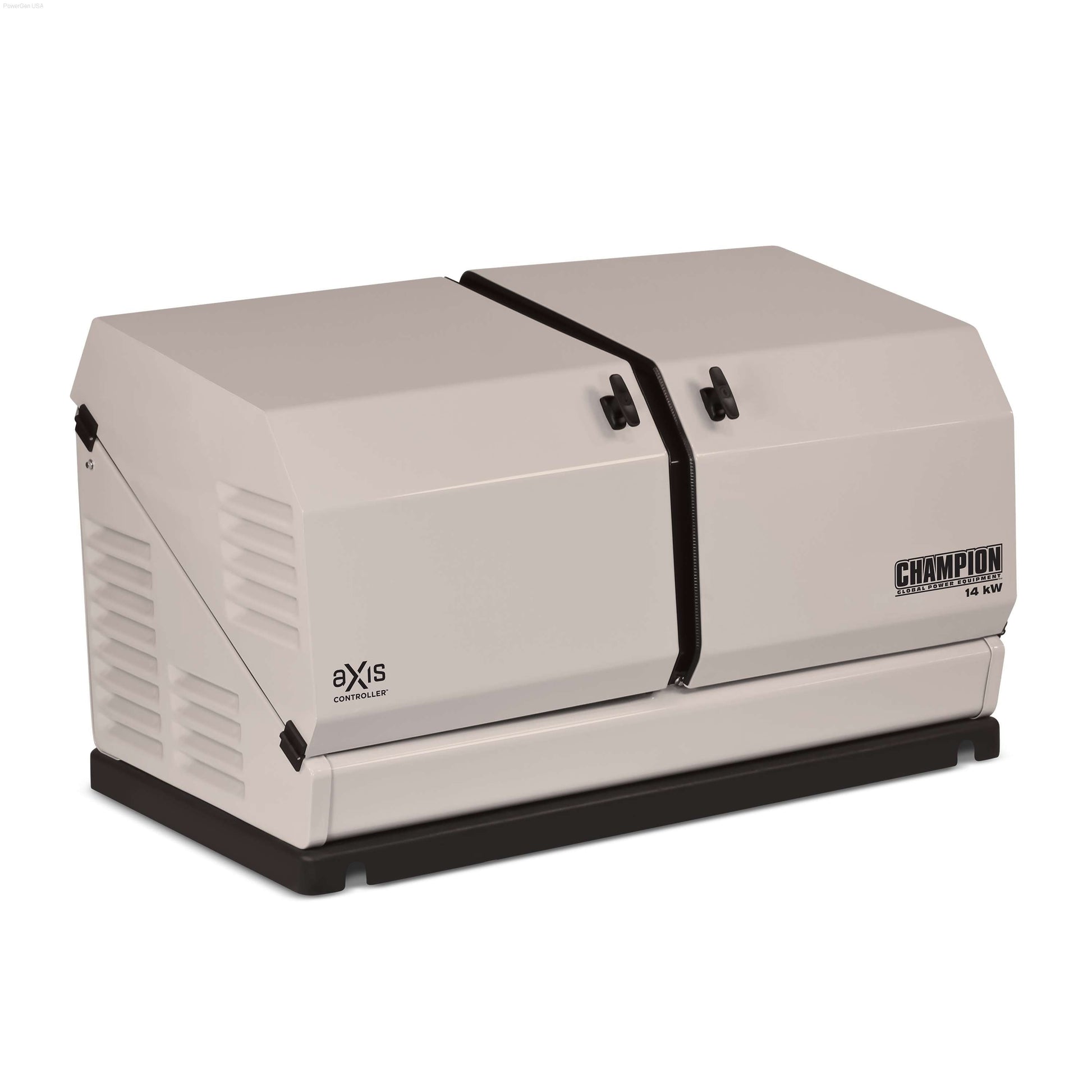

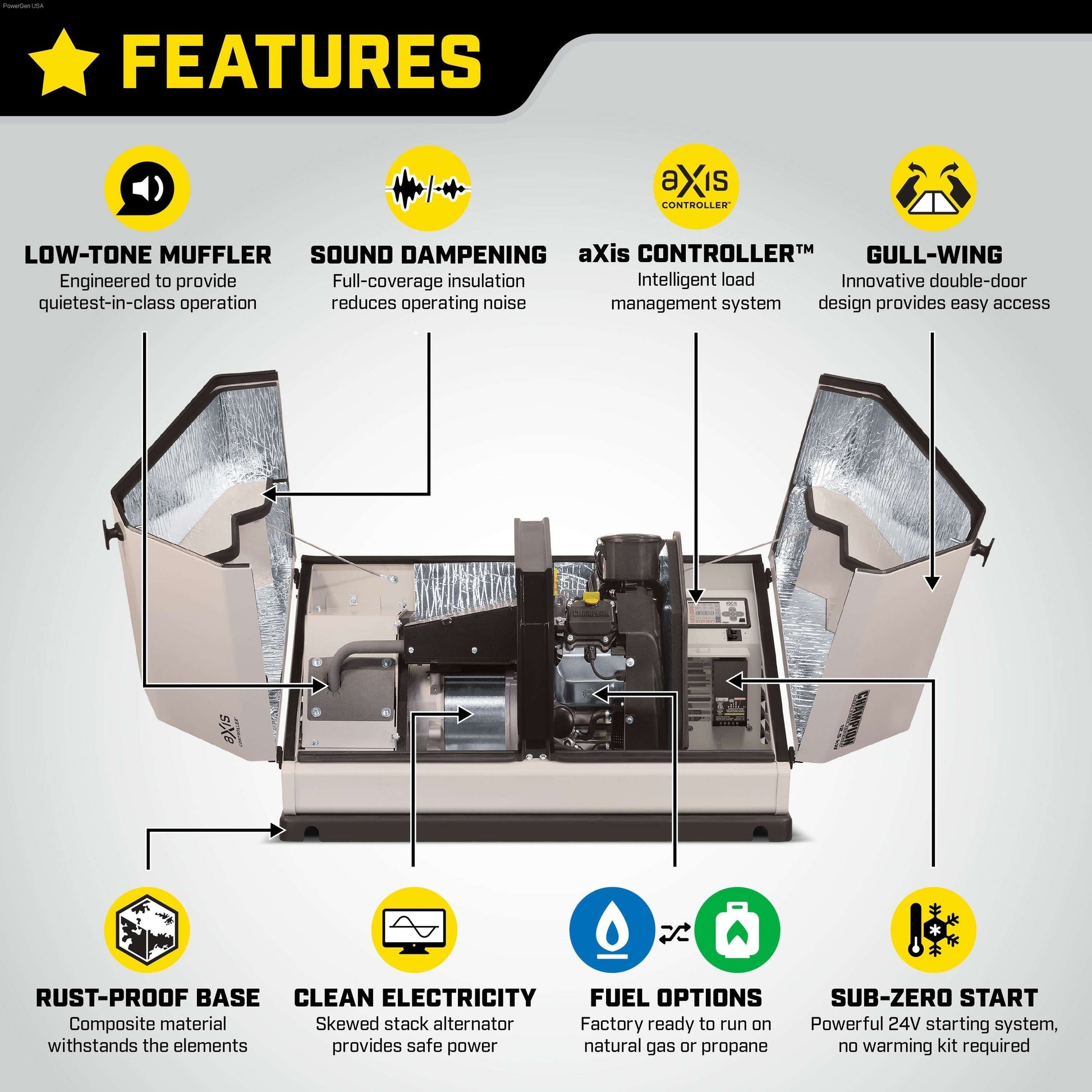

The Champion aXis platform is a programmable, upgradable home standby system. The digital aXis Controller™ is equipped to provide continuous protection for the HSB. Power Line Carrier technology allows the system to communicate using your home’s existing wiring so your generator can talk to the automatic transfer switch and other components without needing to run separate wires, saving you money and time. With aXis Wi-Fi Direct your installer can use a tablet or phone to program your generator meaning faster setup and lower cost.

This automatic Whole House transfer switch backs up your home’s 150-amp distribution panel and has the ability to manage your high-demand appliances by using our aXis Load Management Modules model 100868 (sold separately). Choose from four priority levels for each appliance from “must haves” to “nice to haves.” Multiple devices can share the same priority allowing for an unlimited number of loads that can be managed. If your generator nears capacity, high-demand appliances are automatically turned off according to their priority level to avoid overload. Load Management Modules also use Power Line Carrier technology simplifying installation.

Featuring a NEMA 3R Service Entry rated enclosure, this switch may be installed indoors or outdoors and is ETL listed to comply with UL standards for the US.

Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with FREE lifetime technical support, a 10-year limited warranty on the generator and a 2-year limited warranty on the ATS.

What’s included

  • HSB Enclosure Keys
  • LPG Jets
  • Jet Change Tool
  • Oil Drain Pan
  • Battery Cables & Hardware
  • Flexible Fuel Line



SPECIFICATIONS

Propane Rated Watts 14000W
Natural Gas Rated Watts 12500W
Propane Rated Amps at 120V 116.7A
Propane Rated Amps at 240V 58.3A
Natural Gas Rated Amps at 120V 104A
Natural Gas Rated Amps at 240V 52A
Rated Volts 120/240
Rated Frequency 60Hz
Phase Single
Propane Fuel Consumption at 1/2 Load 1.6  gal/h
Propane Fuel Consumption at Full load 2.6 gal/h
Natural Gas Fuel Consumption at 1/2 Load 116.5 ft3/h
Natural Gas Fuel Consumption at Full Load 180.1 ft3/h
Main Line Circuit Breaker 65A
Starting System Automatic 24V
Operational Volume 62 dBA
Cooling System Air Cooled
AC Ton Rating 5T
Generator Enclosure Steel
Generator Mounting Pad Composite
Engine Brand Champion
Engine Size 754cc
Engine Type 4-stroke
Engine Speed 3600
Fuel Type Propane (LPG), Natural Gas (NG)
Engine Oil Type Mobil 1 5W-30 Full Synthetic
Engine Oil Capacity 1.7 qt.
Engine Oil Included No
Low Oil Shut-Off Yes
ETL Listing ETLus
EPA Certified Yes
Switch Amps 150A
Switch Volts 120/240
Switch Type Whole House
Switch Circuits Whole Service
Switch Poles 2
Load Management Yes
Service Entry Rated Yes
Switch Enclosure NEMA 3R



DIMENSIONS

Length 49 in.
Width 29 in.
Height 29 in.
Weight 439 lb.
