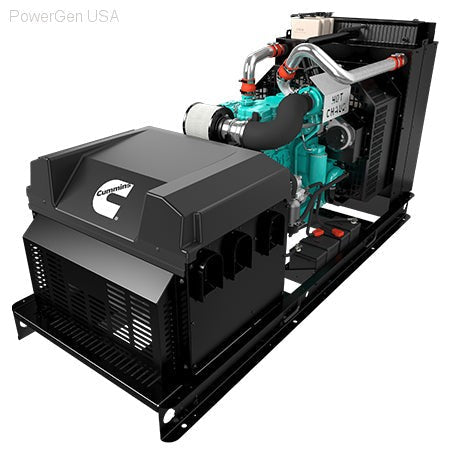

Cummins C200 D6D 200kW Agricultural Spec Diesel Generator (1-Phase 120/240V) - PowerGen USA

Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.

Heavy duty engine - Rugged 4-cycle industrial diesel delivers reliable power and fast response to load changes.

Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.

Control system - Provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.

Cooling system - Standard cooling package provides reliable running at up to 50 °C (122 °F) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.

Battle Short Mode – This mode will allow the generator to override certain faults that would normally shut the generator down.

Flexible exercise mode - The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer's preference reducing unnecessary fuel consumption, emissions and noise.

Self-diagnostics and easy service - The generator is equipped with Cummins PowerCommand® electronic control to provide industry-leading self-diagnostic capabilities. In addition, critical components of the generator are designed to ensure service and preventive maintenance can be completed in a short period of time.

Weight, size, and sound level

Weight: 3915 lbs. (1776 kg)2

Size: Length 143.0 in (3621 mm), width 40.0 in (1016 mm), height 72.0 in (1836 mm)

Sound: 71.3 dB(A) at 23 ft. (7 m) with sound level 2 enclosure

SPECIFICATIONS

 Engine SPecifications

Alternator Specifications

Accessories

• Battery heater kit
• Audible alarm
• Engine oil heater
• Enclosure Sound Level 1 & 2
• Remote control displays
• Battery charger – stand-alone,12 V
• Auxiliary output relays (2)
• Circuit breakers
• Auxiliary configurable signal inputs (8) and relay outputs (8)
• Remote monitoring device – PowerCommand 500/550
• Annunciator – RS485
• Base barrier – elevated generator sets
• Alternator heater
