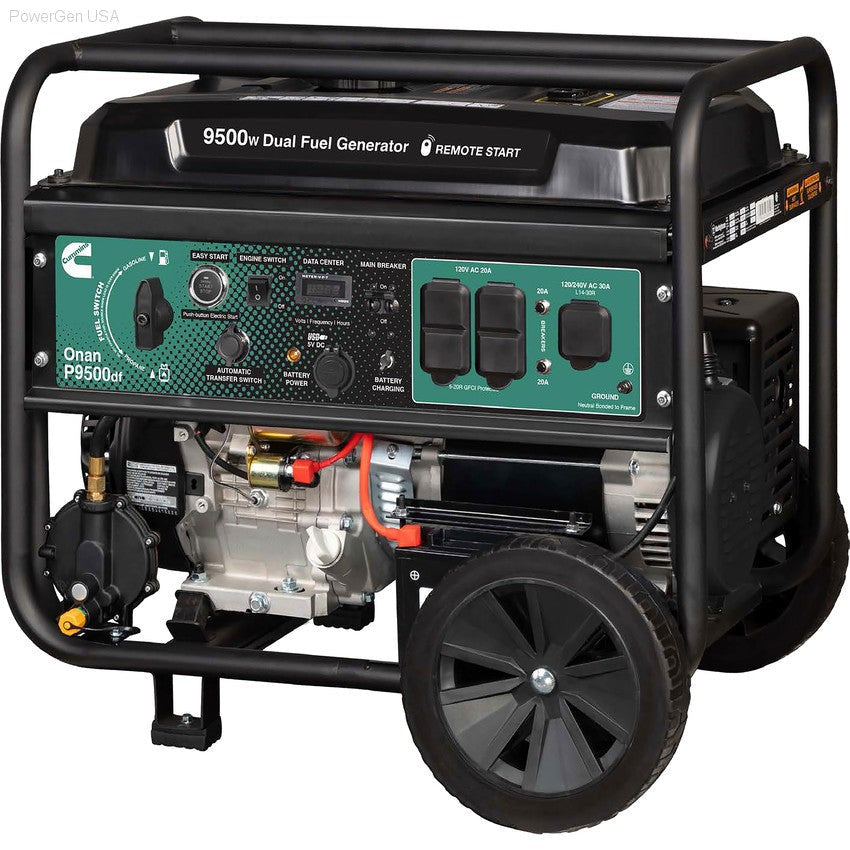

Cummins Onan P9500df Dual-Fuel Generator

The Cummins Onan P9500df is the most powerful generator in our portable generator lineup. Designed in a dual-fuel setup, it runs on gasoline or propane (LPG) with the flip of a switch. Producing 9500 peak watts and 7500 running watts of power (using gasoline), it can be used for your camper, jobsite, or as a home backup during power outages. The 13-hp 420cc OHV 4-Stroke engine is paired with a 6.6-gallon fuel tank. At 25% load, you can expect 16 hours of run time on gasoline and 8 hours on propane (using a standard 20 lb. propane tank). With the included remote starter, you can start your generator 100 yards away, or you can use the onboard push button or pull cord backup. As always, it’s back by the Cummins 24/7 global support network and a 3-year residential warranty.

These products are not intended to be used as a main or Prime Power (primary source of power) in place of utility power where utility power service is present or where utility power service does not normally exist, regardless of whether a consumer application or commercial application is involved. This application could void the warranty.

FEATURES

• Transfer switch ready with L14-30R twist lock outlet
• Remote start with push button and pullcord backup
• Battery charging port with charger included
• Wheels and flip-up handle for easy transportation
• 16 hours of run time at 25% load using gasoline
• 8 hours of run time at 25% using propane
• Fuel gauge on top of 6.6-gallon tank
• Dependable 13 hp 420cc OHV 4-Stroke engine
• 3-Year Residential Warranty/ 1-Year Commercial Warranty
• Dust covers for outlets keep them clean
• LED Display shows volts, frequency, and lifetime hours
• AC Outlets: (1) 120/240V 30A (L14-30R), (2) Duplex 120V 20A GFCI (5-20R)

SPECIFICATIONS

• Part Number: A058U967
• Gasoline Running Watts: 7500
• Gasoline Peak Watts: 9500
• Gasoline Running Amps: 62.5A @ 120V/31A @ 240V
• Gasoline Peak Amps: 79A @ 120V/39A @ 240V
• Propane Running Watts: 6750
• Propane Peak Watts: 8550
• Propane Running Amps: 56 @ 120V/28A @ 240V
• Propane Peak Amps 71.25 @ 120V/35.6A @ 240V
• AC Voltage: 120/240 Volts
• AC Frequency: 60 Hz
• Battery: Included
• Battery: Charger Included Yes
• Remote Start Distance (yards/meters): 109 yd. (100 m.)
• Engine RPM: 3600
• Operational Volume (dBA): As low as 74 dBA
• Carburetor Kit Required to Operate at Altitude: Yes, above 2000ft
• Built-in Inverter: No
• Fuel Type: Propane or Unleaded Gasoline, 10% Ethanol or less
• Gasoline Fuel Gauge: Yes
• GFCI Outlets: Yes
• Overload Protection (circuit breaker): Yes
• Assembled Length in. (mm) 27.25 in. (692 mm)
• Assembled Width in. (mm) 26.25 in. (667 mm)
• Assembled Height in. (mm) 26.25 in. (667 mm)
• Extended Length in. (mm) 40.7 in. (1033.9 mm)
• Carton Length in. (mm) 31 in. (787 mm)
• Carton Width in. (mm) 21.75 in. (552 mm)
• Carton Height in. (mm) 23.25 in. (591 mm)
• Dry Unit Weight lb. (kg) 194 lb. (88 kg)
• Shipping Weight Ib. (kg) 202 lb. (91.6 kg)
