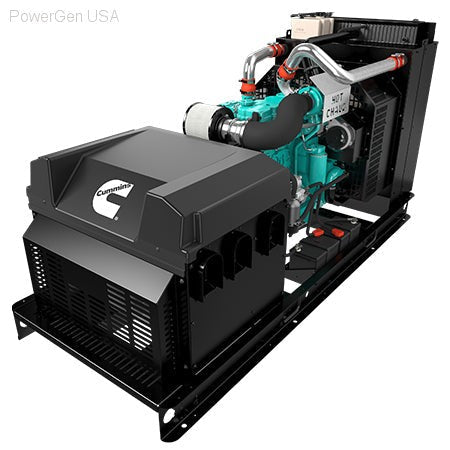

Cummins 125kw generator C125 D6D Agricultural Spec Diesel Generator (1-Phase 120/240V) - PowerGen USA

Cummins 125kw generator C125 D6D Agricultural Spec Diesel Generator (1-Phase 120/240V) - PowerGen USA

Regular price $39,292.00 CAD
Regular price Sale price $39,292.00 CAD
Sale Sold out
Shipping calculated at checkout.

Robust product design and testing - The Cummins 125kw generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards, ensuring reliability in the toughest environments.

Heavy-duty engine - The rugged 4-cycle industrial diesel engine delivers reliable power and fast response to load changes, making this 125kw diesel generator perfect for a wide range of applications.

Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, ensuring low waveform distortion with non-linear loads and fault-clearing short-circuit capability for optimal performance.

Control system - This generator’s control system provides total generator set system integration, including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection, and NFPA 110 Level 1 compliance.

Cooling system - The standard cooling package ensures reliable operation at ambient temperatures up to 50°C (122°F). Coolant heaters also come standard on the Cummins C125 D6D generator for easy starting well below freezing.

Battle Short Mode – This feature allows the generator to override certain faults that would normally cause a shutdown, ensuring continuous operation when critical power is needed.

Flexible exercise mode - The innovative flexible exercise mode allows the generator to exercise at a time, frequency, and duration that suits the customer's preference, reducing unnecessary fuel consumption, emissions, and noise.

Self-diagnostics and easy service - The generator is equipped with Cummins PowerCommand® electronic control for industry-leading self-diagnostic capabilities. In addition, critical components are designed for quick service and preventive maintenance, ensuring long-term performance of your 125kw generator.

Weight, size, and sound level

Weight: 3915 lbs. (1776 kg)2

Size: Length 143.0 in (3621 mm), width 40.0 in (1016 mm), height 72.0 in (1836 mm)

Sound: 71.3 dB(A) at 23 ft. (7 m) with sound level 2 enclosure







Standby 60 Hz

Model

Model Number

KW

KVA

C60D6

A060A345

60

60

C80D6C

A061T469

80

80

C100D6C

A061T471

100

100

C125D6D

A060A344

125

125

C150D6D

A061T474

150

150

C175D6D

A061T476

175

175

C200D6D

A061T477

200

200

SPECIFICATIONS

Model

C60 D6

C80 D6C

C100 D6C

C125 D6D

C150 D6D

C175 D6D

C200 D6D

Controller

PowerCommand 1.1

Operational temp. range

-40 F to +122 F

Circuit Breaker

250

400

600

600

800

800

800

Governor reg. class

ISO 8528 Part 1 Class G3

Voltage regulation, no load to full load

± 1.0%

Random voltage variation

± 1.0%

Frequency regulation

Isochronous

Random freq. variation

± 0.5%

Radio frequency emissions compliance

FCC code title 47 part 15 class A and B



 Engine SPecifications

Model

C60 D6

C80 D6C

C100 D6C

C125 D6D

C150 D6D

C175 D6D

C200 D6D

Design

QSB3.3

QSB5

QSB7

Displacement

3.26 L (199 in3 )

4.5 L (272 in3 )

6.69 L (408 in3 )

Cylinder block

         Cast iron, in-line

Battery capacity (at ambient temperature of 0C (32 F)

850 amps

2x 850 amps

Battery charging alternator

50 amps

100 amps

100 amps

Starting voltage

12-volt, negative ground

2x 12-volt, negative ground

Lube oil filter type(s)

Spin-on with relief value

Standard cooling system

High ambient radiator

Rated speed

1800rpm

Alternator Specifications



Model

C60 D6

C80 D6C

C100 D6C

C125 D6D

C150 D6D

C175 D6D

C200 D6D

Design

Brushless, 4 pole, drip proof, revolving field

Stator

2/3 pitch

Rotor

Direct coupled, flexible disc

Insulation system

Class H per NEMA MG1-1.65

Standard temp. rise

120 ºC (248 °F) Standby

Exciter type

Torque match (shunt) with PMG as option

Alternator cooling

Direct drive centrifugal blower

AC waveform Total Harmonic Distortion (THDV)

< 5% no load to full linear load, < 3% for any single harmonic

Telephone Influence Factor (TIF)

< 50 per NEMA MG1-22.43

Telephone Harmonic Factor (THF)

< 3%

Accessories

  • Battery heater kit
  • Audible alarm
  • Engine oil heater
  • Enclosure Sound Level 1 & 2
  • Remote control displays
  • Battery charger – stand-alone,12 V
  • Auxiliary output relays (2)
  • Circuit breakers
  • Auxiliary configurable signal inputs (8) and relay outputs (8)
  • Remote monitoring device – PowerCommand 500/550
  • Annunciator – RS485
  • Base barrier – elevated generator sets
  • Alternator heater

Model

Dim “A” mm (in.)

Dim “B” mm (in.)

Dim “C” mm (in.)

Set weight*wet kg (lbs.)

C60 D6

2235 (88)

864 (34)

1118 (44)

771 (1700)

C80 D6C

2489 (98)

965 (38)

1321 (52)

1054 (2324)

C100 D6C

1106 (2439)

C125 D6D

2867 (113)

1016 (40)

1415 (56)

1173 (2586)

C150 D6D

1390 (3064)

C175 D6D

1442 (3179)

C200 D6D

1583 (3491)
