ECOFLOW
EcoFlow 30A RV Power Kit - PowerGen USA
EcoFlow 30A RV Power Kit - PowerGen USA
Regular price
$11,600.00 CAD
Regular price
$13,147.00 CAD
Sale price
$11,600.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

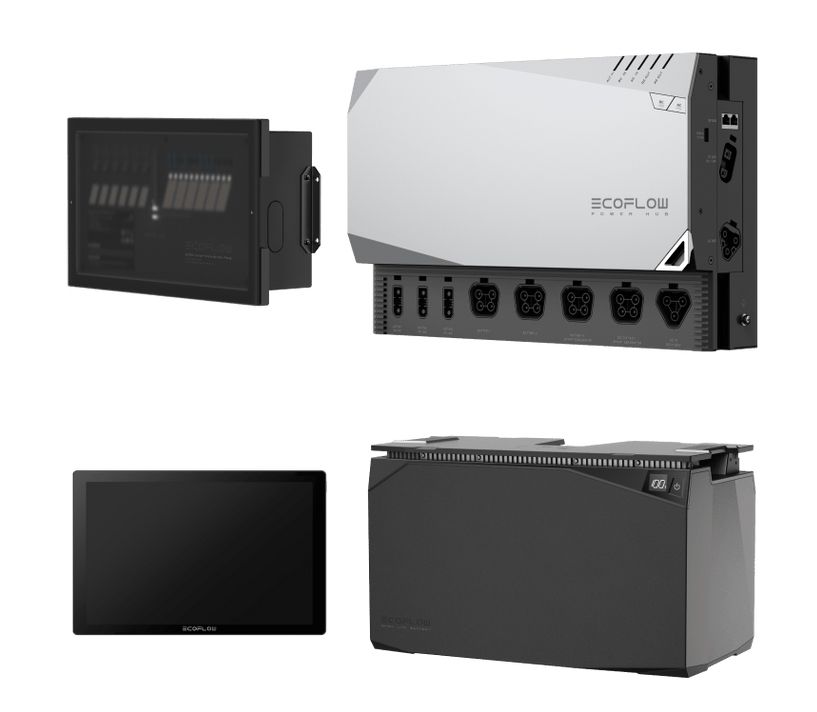

The Ecoflow 30A RV Power Kit is the perfect power option. Whether you're replacing the electrical equipment in your vehicle or building a system from scratch, the Power Kits plug-and-play system lets you customize every component to meet the needs of your vehicle and your getaway. With up to 4000W output and 8000W surge power, the Ecoflow 30A RV Power Kit can simultaneously run 2x 13500 BTU RV air conditioners and other high-powered appliances, like air fryers and space heaters, without the need for a soft starter.
| • | Powerful: The Ecoflow 30A RV Power Kit features a High 5kVA output power, with the ability to run 2x 13500 BTU rooftop a/c units at the same time. |
| • | Easy Set Up: The integrated EcoFlow Power Hub 5kVA has a simple plug-and-play design, allowing you to expand and customize your kit faster than any other power solution on the market. |
| • | Expand: The EcoFlow Power Hub 5kVA can expand up to 45kWh capacity! Get up to 7 days off-grid! |
| • | Charge Your Way: The EcoFlow 5kVA Power Kits support multiple charging methods. |
Solutions for All Types of RV Applications:
| • | Whether you're replacing the electrical equipment in your vehicle or building a system from scratch, the Power Kits plug-and-play system lets you customize every component to meet the needs of your vehicle and your getaway. |
| • | Suitable for luxurious RV travel in Class A and Class C motorhomes, the EcoFlow PowerLuxe solution ensures comfort and a steady energy flow for your entire motorhome. Its advanced 48V electrical architecture offers industry-leading safety and efficiency. For extended road trips, store up to 45kWh of power and generate tremendous amounts of energy from solar and alternator, for ultimate on-the-go comfort. |
| • | This safe, high-performing, compact system is perfect for adventurers and van life enthusiasts who demand unlimited power without a bulky battery system. Ideal for off-grid journeys, the EcoFlow PowerSwift solution can be tailored to fit the lifestyle of a compact van owner. With its intelligent and efficient design, this solution delivers super fast charging and smart control over your power. |
| • | This versatile solution is perfect for RV power system upgrades. Whether you are looking for a powerful lithium battery or simply adding more solar power to your RV, the EcoFlow PowerTrail solution delivers robust, efficient power with smart control features. Boost your RV's energy storage to meet more outdoor power needs. |
SPECIFICATIONS

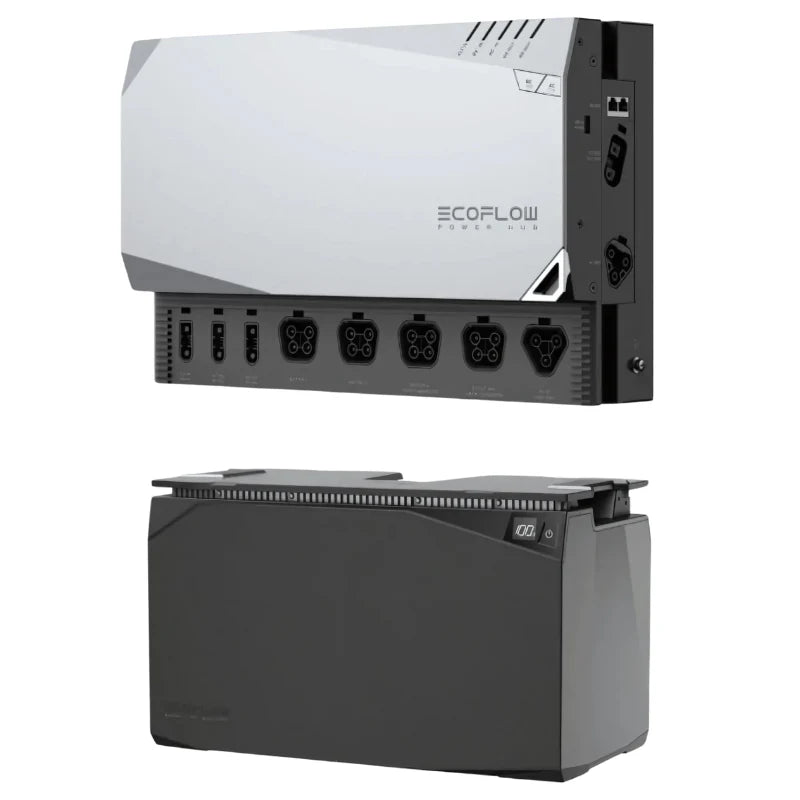

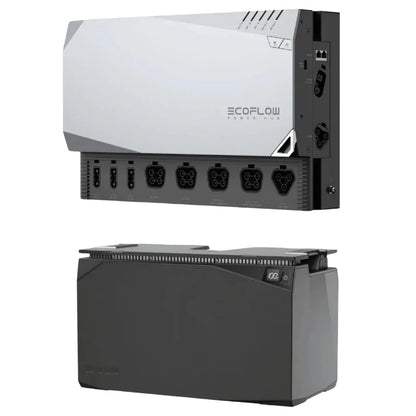

| Power Hub | |
| Manufacturer Name: | EcoFlow |
| Sine Wave: | Pure Sine Wave |
| Net Weight: | 15.7kg (34.6 lb) |
| Dimension (HWD): | 300 x 480 x 151 mm (11.8" x 18.9" x 5.9" in) |
| Communication: | Wi-Fi (2.4G, 5G), Bluetooth |
| GPS: | Supported |
| IP Rating: | IP 20 |
| AC Output (Discharge Only): | 120V - 4000W, 5000VA, 60Hz (Surge 10KVA) |
| AC Output (Bypass Mode): | 100-120V - 50A Max, 50/60Hz |
| X-Fusion (Power Assist): | 33.3A Max, 5000VA Max |
| DC Output(12V/24V): | 13.6V - 100A Max, 1360W Max; 26.4V - 60A Max, 1584W Max |
| 48V DC Output / Smart Generator (48V): | 51.2V - 55A Max |
| USB A Output: | 5V - 2.4A Max |
| EF BUS Output (x2): | 12V - Total 1.2A Max |
| Total Output: | 8752W Max |
| AC Input (Charge Only): | 100-120V - 4000W Max, 50Hz/60Hz |
| AC Input (Bypass Mode): | 100-120V - 50A Max |
| Alternator Input 1 / PV Input 1: | 13-60V - 100A Max, 4000W Max |
| Alternator/PV Input 2/3: | 13-60V - 30A Max, 1600W Max |
| BATTERY 3 / Smart Generator: | 40-57.6V = 100A Max |
| 48V DC Output / Smart Generator (48V): | 40-57.6V = 70A Max |
| Charge: | 40 - 57.6V = 100A Max per port, total 270A Max |
| Discharge: | 40-57.6V = 100A Max per port, total 181A Max |
| Operating Temperature: | -25C to 60C (-13F to 140F), derating > 40C (104F) |
| Discharging Temperature: | -25C to 60C (-13F to 140F), derating > 40C (104F) |
| Storage Temperature: | -25C to 70C (-13F to 158F) |
| Operating Humidity: | 0% - 95% RH (non-condensing) |
| Altitude: | 2,000 m (6,562 ft) |
| Warranty: | 5 Years |
| 5kWh LFP Battery | |
| Type: | Lithium Iron Phosphate Chemistry |
| Rating: | 51.2V (Nominal), 100Ah |
| Lifespan: | 3000 Cycles @ 80% DOD |
| LED: | Integrated BMS and LCD Indicator |
| Special Features: | Auto-Heating for Cold Environments |
| Connection: | Quick Access Fuse Box Mounted |
| BMS: | Advanced Battery Safety Protections |
| Charging Temp: | -4F to 125F |
| Discharging Temp: | -4F to 140F |
| Dimensions: | 11.8" x 19.7" x 10.3" (H x W x D) |
| Weight: | 89.5 lbs |
| Certs: | CE, UL, FCC, IC, UN38.3, IP54 Compliance / EMC Class B |
| Power Kit Console | |
| Display: | 7-Inch (diagonal) IPS Touch Screen |
| Communication: | RJ45 CAN |
| Power Supply: | 12 VDC Power Supply |
| Installation: | Quick-Mounting Design |
| Operating Temp: | -13F to 140F |
| Dimensions: | 4.5” x 8.1” x 0.9” (H x W x D) |
| Weight: | 1 lbs |
| Cert: | CE, UL, FCC Compliance / EMC Class B |
| EcoFlow AC/DC Smart Distribution Panel | |
| AC Main Input: | 30A Max, 120V, 3600W |
| DC Main Input for 12V or 24V System: | 12V, 70A, 1000W Max or 24V, 60A, 1500W Max |
| AC Output: | 6x AC Positions with 20A Circuit Breakers |
| DC Output: | 12 X Fused DC Positions (6 X Positions Controllable via Power Kit Console & APP) |
| Monitoring: | All AC & DC Positions Can be Monitored |
| Operating Temp: | -13F to 140F |
| Dimensions: | 8.3" x 14" x 3.9" (H x W x D) |
| Weight: | 5.7 lbs |
| Certs: | CE, UL, FCC, IP21 Compliance / EMC Class B |
