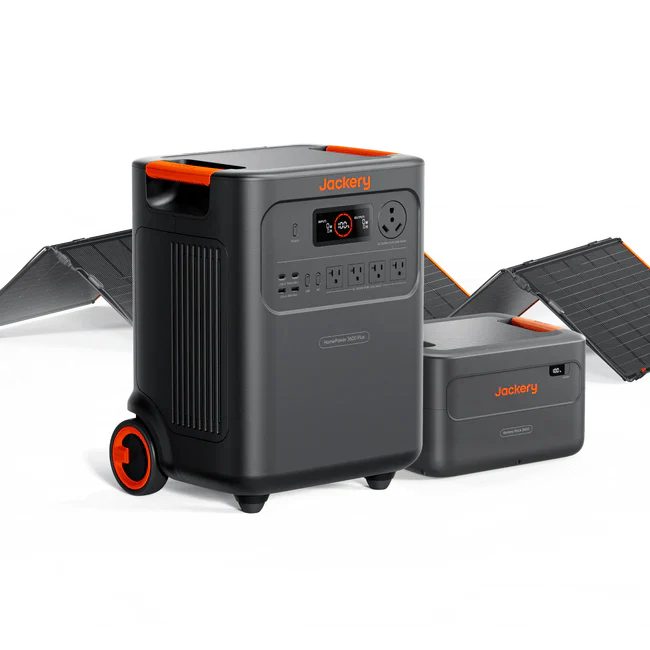

Jackery HomePower 3600 Plus (7.2kWh) + SolarSaga 500 X
Jackery HomePower 3600 Plus (7.2kWh) + SolarSaga 500 X
Couldn't load pickup availability
Jackery HomePower 3600 Plus (7.2kWh) + SolarSaga 500 X
Sku: 60-363650-US00124
The Jackery HomePower 3600 Plus (7.2kWh) + SolarSaga 500 X bundle is a powerful, expandable home backup and off-grid energy solution. It includes the HomePower 3600 Plus power station, one Battery Pack 3600 for doubled storage (total 7.2kWh), and the SolarSaga 500 X solar panel for fast, sustainable solar recharging.
With 3,600W of continuous output (7,200W surge), a LiFePO₄ battery rated for 6,000+ cycles, and parallel expansion up to 21.48kWh, this system is built for long-lasting energy independence. Whether you need reliable home backup, emergency preparedness, or clean power for RVs, off-grid cabins, or outdoor adventures, this Jackery combo delivers unmatched performance and peace of mind.
Jackery HomePower 3600 Plus (7.2kWh) + SolarSaga 500 X Features
Massive Power – 3,600W Output / 7,200W Surge - Easily powers high-demand appliances including refrigerators, air conditioners, water pumps, and microwaves.
Expanded Storage – 7.2kWh Total - Includes the Battery Pack 3600, doubling capacity for extended runtimes. Expandable further up to 21.48kWh with additional packs.
Fast Solar Charging – 500W Input - Recharge efficiently with the SolarSaga 500 X panel, even on cloudy days.
Durable LiFePO₄ Battery – 6,000+ Cycles - Built to last with advanced BMS safety protections, retaining ≥70% capacity after thousands of cycles.
Quick AC Recharge – 2.5 Hours - Fully recharge via AC power in just 2.5 hours. Hybrid AC + solar charging supported.
UPS Backup Functionality - <20ms switchover keeps devices running without interruption during outages.
Portable Design with Pull Rod & Wheels - Easy to move and store despite its high-capacity build.
What's Included
Everything you need is included with your product.
- 1 x Jackery HomePower 3600 Plus
- 1 x SolarSaga 500 X
- 1 x Battery Pack HomePower 3600
- 1 x AC Charge Cable
- 1 x Expansion Cable
- 1 x User Manual
SPECIFICATIONS
Jackery Solar Generator HomePower 3600 Plus Specifications
General
| Category | Specifications |
| Weight | About 77.16 lbs (35 kg) |
| Dimensions | 15.2×12.2×19.3 in / 38.5×30.9×49.1 cm |
| Charge Temperature | -4°F to 113°F ( -20°C to 45°C) |
| Discharge Temperature | -4°F to 113°F ( -20°C to 45°C) |
| Warranty | 3+2 Years |
Battery
| Category | Specifications |
| Capacity | 80Ah / 44.8V DC (3584 Wh) |
| Cell Chemistry | LiFePO4 |
| Cycle life | 6000 cycles to 70%+ capacity |
Output Ports
| Category | Specifications |
| AC Output | (4x) 120V~ 60Hz, 20A Max, 2400W | (1x) 120V~ 60Hz, 30A Max, 3600W |
| AC Total Output | 3600W Rated, 7200W Surge peak |
| USB-C Output | (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A |
| USB-A Output | (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A |
| Cigarette Lighter Port | 12V⎓10A Max |
Input Ports
| Category | Specifications |
| Charge Mode AC Input | 100V-120V~ 60Hz, 15A Max |
| Bypass Mode AC Input/Output | 120V~ 60Hz, 12A Max, 1440W |
| DC Input | (2x) DC 8mm Ports: 12-16V (Working Voltage)⎓8A Max, Double to 8A Max; | 16-60V (Working Voltage)⎓12A Max, Double to 24A/1000W Max |
Charging Time
| Category | Specifications |
| AC Adapter | 2.5 Hours |
| Car Adapter | Supported |
Jackery SolarSaga 500 X Specifications
General
| Category | Specifications |
| Weight | 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg) |
| Protection Class Against Electric Shock | Class II |
| Waterproof | IP68 |
| Operating Temperature Range | -40~185℉（-40~85℃） |
| Warranty | 5 Years |
Solar
| Category | Specifications |
| Maximum System Voltage | 600V DC |
| Maximum Reverse Current | 15A |
| Bifaciality Coefficient (back/front) | Pmax>80%，Voc>97%，Isc>80% |
| Voltage Temperature Coefficient | -0.26%/℃ |
| Power Temperature Coefficient | -0.32%/℃ |
STC (1000W/㎡, 25℃, AM 1.5)
| Category | Specifications |
| Peak Power (Pmax) | 500W±5% |
| Open Circuit Voltage (VOC) | 48.5V±5% |
| Short Circuit Current (Isc) | 13.02A±5% |
| Power Voltage (Vmp) | 41.7V±5% |
| Power Current (Imp) | 12.0A±5% |
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
| Category | Specifications |
| Peak Power (Pmax) | 545W±5% |
| Open Circuit Voltage (VOC) | 49.2V±5% |
| Short Circuit Current (Isc) | 13.86A±5% |
| Power Voltage (Vmp) | 42.5V±5% |
| Power Current (Imp) | 12.84A±5% |
Dimensions
| Category | Specifications |
| Folded | Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm) |
| Unfolded | Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm) |
Jackery Battery Pack 3600
| Category | Specifications |
| Model No. | JBP-3600A (Only use together with Jackery HomePower 3600 Plus) |
| Capacity | 80Ah/44.8Vdc (3584Wh) |
| Cell Chemistry | LiFePO4 |
| Weight | About 55.1 lbs/25 kg |
| Dimension | 14.8 x 12.5 x 9.0 in/37.5 x 31.7 x 22.9 cm |
| Cycle Life | 6000 cycles to 70%+ capacity |
| DC Expansion Port (Input) | 36.4V-50.4V⎓60A Max |
| DC Expansion Port (Output) | 36.4V-50.4V⎓100A Max |
| Charge Temperature | -20°C~45°C (-4°F~113°F) |
| Discharge Temperature | -20°C~45°C (-4°F~113°F) |
