Jackery HomePower 3600 Plus + Manual Transfer Switch
Jackery HomePower 3600 Plus + Manual Transfer Switch
Couldn't load pickup availability
Jackery HomePower 3600 Plus + Manual Transfer Switch
Sku: 60-360000-US00256

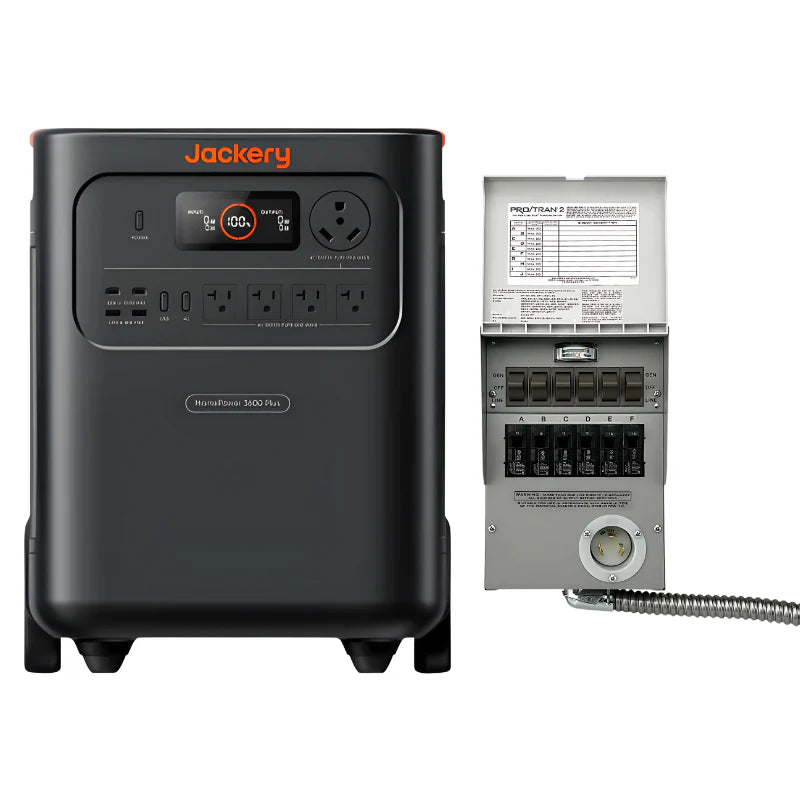

The Jackery HomePower 3600 Plus + Manual Transfer Switch is the ultimate home backup solution, allowing you to safely connect your Jackery power station directly to your home’s electrical panel. With a 3600W output (7200W surge), expandable battery capacity up to 21.48kWh, and the included Pro/Tran® 2 30A Transfer Switch, you can keep your lights, refrigerator, and critical appliances running during outages.
Built for reliability and convenience, this bundle offers a simple plug-and-play connection with NEMA L5-30 inlet, durable metal housing, and six circuit compatibility—perfect for powering essential circuits in your home.
Jackery HomePower 3600 Plus + Manual Transfer Switch Features
High-Powered Backup - 3600W rated output, expandable up to 21.48kWh with battery packs, and 7200W surge capacity.
Safe & Easy Home Integration - The included Pro/Tran® 2 30A Transfer Switch allows seamless, code-compliant connection to your home circuits.
Durable Build - Metal enclosure and gray finish ensure long-lasting durability and safety.
Flexible Circuit Control - Supports up to 6 circuits for powering critical home appliances and devices.
Portable & Expandable Power - Lightweight power station with modular battery expansion to adapt to your energy needs.
What's Included
Everything you need is included with your product.
- Jackery HomePower 3600 Plus
- Manual Transfer Switch
- AC Charge Cable
- User Manual
SPECIFICATIONS
General
| Category | Specifications |
| Weight | About 77.16 lbs (35 kg) |
| Dimensions | 15.2×12.2×19.3 in / 38.5×30.9×49.1 cm |
| Charge Temperature | -4°F to 113°F ( -20°C to 45°C) |
| Discharge Temperature | -4°F to 113°F ( -20°C to 45°C) |
| Warranty | 3+2 Years |
Battery
| Category | Specifications |
| Capacity | 80Ah / 44.8V DC (3584 Wh) |
| Cell Chemistry | LiFePO4 |
| Cycle life | 6000 cycles to 70%+ capacity |
Output Ports
| Category | Specifications |
| AC Output | (4x) 120V~ 60Hz, 20A Max, 2400W | (1x) 120V~ 60Hz, 30A Max, 3600W |
| AC Total Output | 3600W Rated, 7200W Surge peak |
| USB-C Output | (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A |
| USB-A Output | (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A |
| Cigarette Lighter Port | 12V⎓10A Max |
Input Ports
| Category | Specifications |
| Charge Mode AC Input | 100V-120V~ 60Hz, 15A Max |
| Bypass Mode AC Input/Output | 120V~ 60Hz, 12A Max, 1440W |
| DC Input | (2x) DC 8mm Ports: 12-16V (Working Voltage)⎓8A Max, Double to 8A Max; | 16-60V (Working Voltage)⎓12A Max, Double to 24A/1000W Max |
Charging Time
| Category | Specifications |
| AC Adapter | 2.5 Hours |
| Car Adapter | Supported |
