Jackery

Jackery Solar Generator Explorer 5000 Plus + Solarsaga 500 X x2

Jackery Solar Generator Explorer 5000 Plus + Solarsaga 500 X x2

Regular price $7,168.00 CAD
Regular price Sale price $7,168.00 CAD
Sale Sold out
Shipping calculated at checkout.
  • 5-60kWh Capacity & 7.2-14.4kW Output for reliable home backup power lasting up to 2 weeks.
  • 120V/240V dual voltage enhances compatibility, supporting more loads like dryers, water pumps, ovens, ACs, EVs, RVs, etc.
  • Fully charges in 1.7 hours, compatible with AC, high-voltage PV (4000W), low-voltage PV (1200W), and more.
  • UPS 0 ms switchover for uninterrupted power to essential devices.
  • Next-gen LiFePO4 battery lasts over 10 years, including a 5-year warranty + 2 optional years.
  • ChargeShield 2.0 for advanced protection and efficient charging.
  • Smart App Control: Remotely monitor and manage power usage, with scheduled charge/discharge settings for efficiency.
  • Compact & Quiet Design: Features optimized CTB structure, equipped with wheels and a pull handle, maintaining a low noise level of just 30 dB.
  • Solar Integration: Connects with Jackery 500X solar panels, 25% higher efficiency.
  • Founded in 2012 in California, Jackery has earned the trust of over 4 million users and received more than 150,000 positive reviews.









Jackery Explorer 5000 Plus offers powerful, eco-friendly home backup with 5-60kWh capacity and dual voltage output (120V/240V). It supports various appliances during outages with 12 output ports, 7.2-14.4kW power, and a 0ms UPS switch for seamless operation of essential devices like fridges, computers, home servers, routers, and ventilators. Smart app control and multiple charging options add convenience, while its zero-emission design ensures safe indoor use.







FEATURES SUMMARY











SPECIFICATIONS

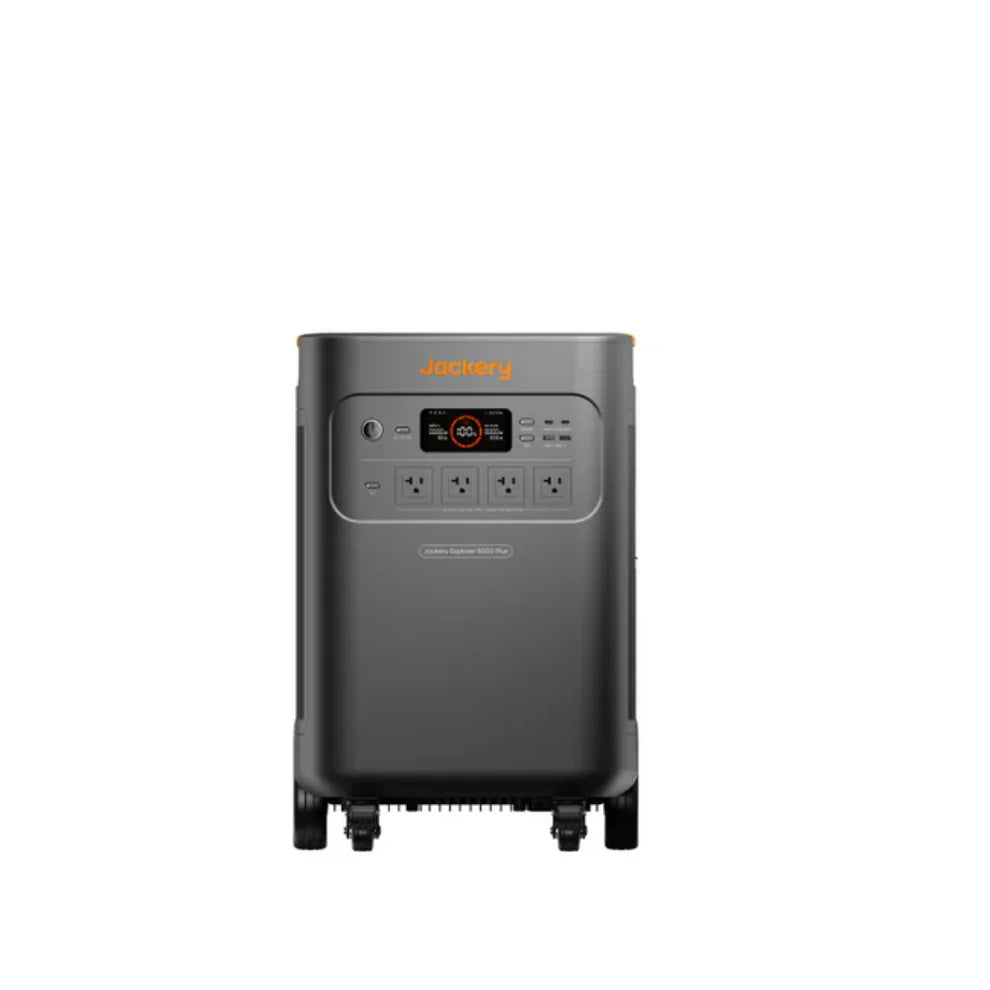

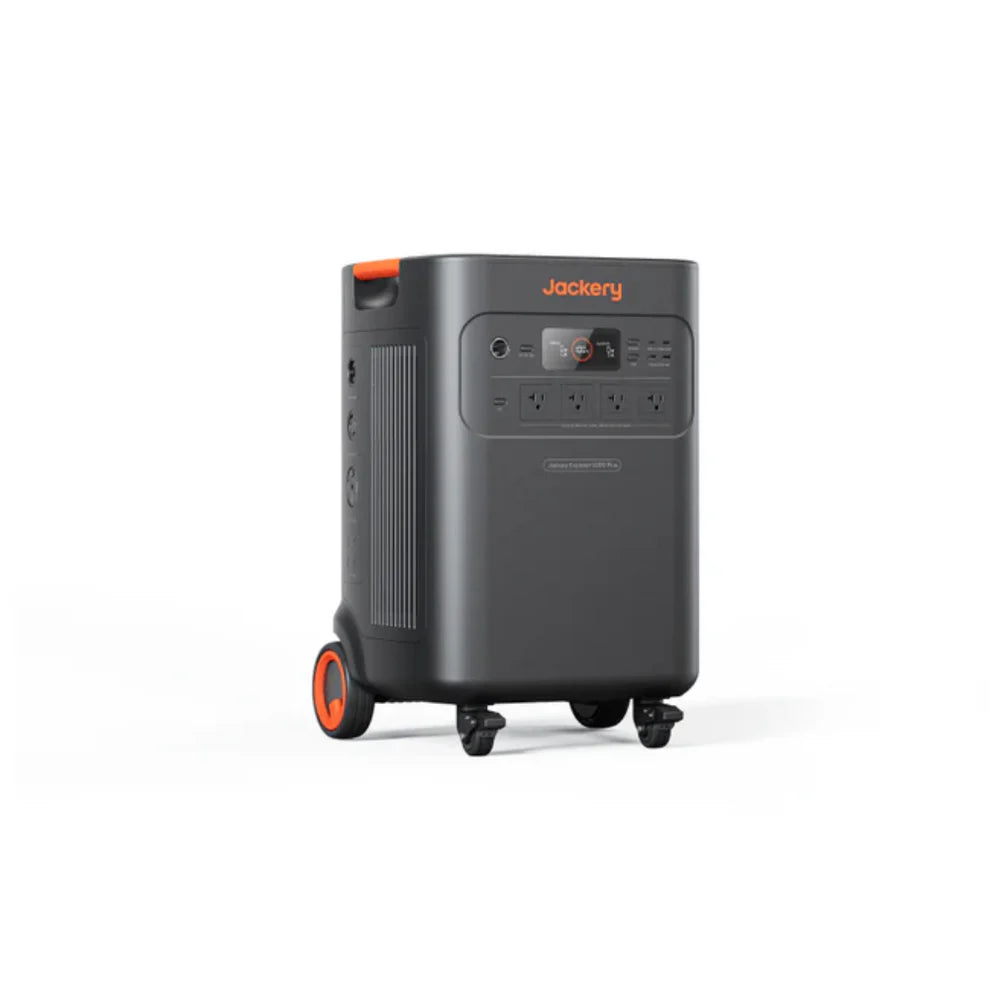

Explorer 5000 Plus(Explorer 5000 Plus Portable Power Station)


Battery

Capacity:45Ah/112V DC (5040Wh)
Cell Chemistry:LiFePO4
Cycle life:4000 cycles to 70%+ capacity

Ports

AC Output:(NEMA L14-30R/14-50) 120V/240V~60Hz, 30A, 7200W Max
AC Total Output:7200W Max, 14400W Surge
AC Output(x4):120V, 20A, 2400W
USB-A Output(x2):18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
USB-C Output(x2):100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
Cigarette Lighter Port:12V⎓10A
AC Expansion Port (Output)(x1):240V~60Hz, 30A, 7200W
DC Expansion Port (Output)(x1):80.5V-126V⎓41A Max
Charge mode AC input:120V~60Hz, 15A Max
Bypass mode AC input/output:120V, 12A Max 240V, 16.7A Max
AC Expansion Port (Input)(x1):240V~60Hz, 16.7A Max
DC Expansion Port (Input)(x1):80.5V-126V⎓98A Max
High-PV:135V-450V⎓15A Max
Low-PV:2 x DC 8mm Ports; 16V-60V⎓10.5A Max, Double to 21A/1200W Max 11V-16V(Working Voltage)⎓8A Max, Double to 8A Max

Dimensions

Weight:About 134.5 lbs (61 kg)
Height:16.5in (41.8cm)
Width:15.5in (39.5cm)
Length:25 in (63.5 cm)

General

Warranty:5 Years
Charge Temperature:0°C~45°C (32°F~113°F)
Discharge Temperature:-15°C~45°C (5°F~113°F)
UPS:Backup UPS: <20ms, Onine UPS: 0ms
Inverter Topology:Non-isolated
Power Factor:≥0.98







Jackery SolarSaga 500 X


Electrical Data (STC)
Peak Power (Pmax):500W±5%
Open Circuit Voltage (VOC):48.5V±5%
Short Circuit Current (Isc):13.02A±5%
Power Voltage (Vmp):41.7V±5%
Power Current (Imp):12.0A±5%

Electrical Data (BNPI)
Peak Power (Pmax):545W±5%
Open Circuit Voltage (Voc):49.2V±5%
Short Circuit Current (Isc):13.86A±5%
Power Voltage (Vmp):42.5V±5%
Power Current (Imp):12.84A±5%

Dimensions
Folded:Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm)
Unfolded:Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm)
Weight:22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg)

General
Warranty:5 Years
Maximum System Voltage:600V DC
Maximum Reverse Current:15A
Protection Class Against Electric Shock:Class II
Waterproof:IP68
Operating temperature:-40℉~185℉(-40℃~85℃)
Voltage Temperature Coefficient:-0.26%/℃
Power Temperature Coefficient:-0.32%/℃
Bifaciality Coefficient :Pmax>80%,Voc>97%,Isc>80%
