JACKERY

Jackery SolarSaga 500X - PowerGen USA

Jackery SolarSaga 500X - PowerGen USA

$1,110.00 CAD
$1,387.00 CAD $1,110.00 CAD
Sale Sold out
Shipping calculated at checkout.

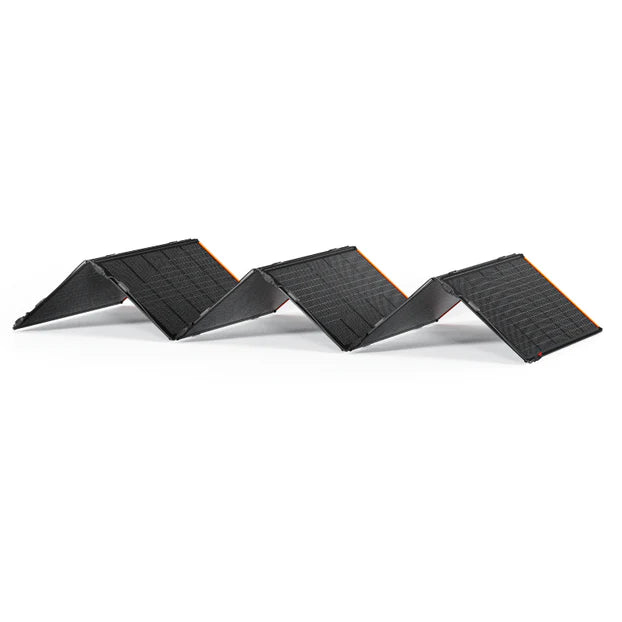

Jackery SolarSaga 500X

Sku: 21-0002-000093



  • Jackery Solar Saga 500 X consists of six SolarSaga 85 panels, each of which can use individually.
  • 500W High Power Output: Stay worry-free with fast solar charging that keeps you powered up at all times.
  • Your DIY quick-setup power station: Easy-to-assemble modular design fits various scenarios for seamless power solutions.
  • Rugged Outdoor Performance: Withstands temperatures from -40°C to 85°C, IP68 waterproof rating for all-weather durability.
  • Portable All-in-One Design: Compact and easy to carry, providing on-the-go convenience wherever you need power.
  • 5-Year Warranty: Enjoy peace of mind with long-lasting, reliable performance backed by a comprehensive warranty.
  • SolarSaga 500X is compatible with the Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 V2.
  • To extend the distance between your solar panels and the power station, you can purchase one or multiple 5m DC extension cables and a single DC8020 to DC7909 adapter.









Jackery SolarSaga 500 X is a 500W high-efficiency solar panel with 25% conversion using TOPCON cells, ideal for DIY photovoltaic setups. It’s IP68-rated for outdoor durability, operating from -40℃ to 85℃. Its foldable, portable design ensures easy transport and installation, with a 5-year warranty for reliable long-term use.

















FEATURES SUMMARY









SPECIFICATIONS



Jackery SolarSaga 500 X


Electrical Data (STC)
Peak Power (Pmax):500W±5%
Open Circuit Voltage (VOC):48.5V±5%
Short Circuit Current (Isc):13.02A±5%
Power Voltage (Vmp):41.7V±5%
Power Current (Imp):12.0A±5%

Electrical Data (BNPI)
Peak Power (Pmax):545W±5%
Open Circuit Voltage (Voc):49.2V±5%
Short Circuit Current (Isc):13.86A±5%
Power Voltage (Vmp):42.5V±5%
Power Current (Imp):12.84A±5%

Dimensions
Folded:Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm)
Unfolded:Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm)
Weight:22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg)

General
Warranty:5 Years
Maximum System Voltage:600V DC
Maximum Reverse Current:15A
Protection Class Against Electric Shock:Class II
Waterproof:IP68
Operating temperature:-40℉~185℉（-40℃~85℃）
Voltage Temperature Coefficient:-0.26%/℃
Power Temperature Coefficient:-0.32%/℃
Bifaciality Coefficient :Pmax>80%，Voc>97%，Isc>80%
