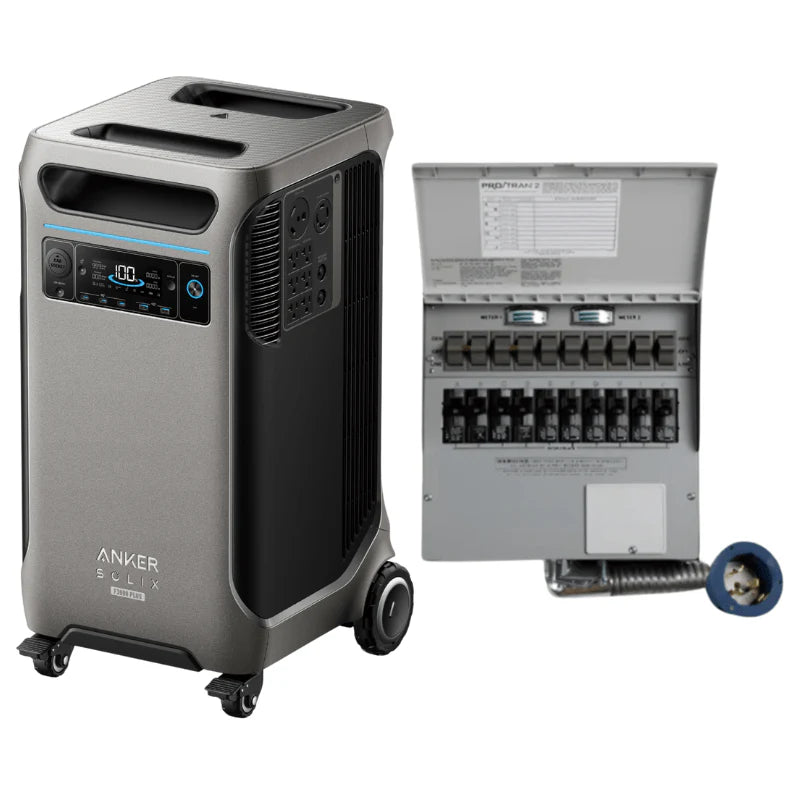

Anker SOLIX F3800 Plus Portable Power Station & 50A Manual Transfer Switch Kit - 3840 Watt Hours - Includes FREE Protective Cover
Anker SOLIX F3800 Plus Portable Power Station & 50A Manual Transfer Switch Kit - 3840 Watt Hours - Includes FREE Protective Cover
Couldn't load pickup availability
The Anker SOLIX F3800 Plus Portable Power Station & 50A Manual Transfer Switch Kit - 3840 Watt Hours features improved functionality when compared to the previous F3800 Generator. Featuring a superior charge controller that allows for 30% additional solar input capacity (3,200W Max), the ability to charge using 240V Fuel Generators and a preferable universal compatibility option with the TT-30R ports that work with most RV applications. The proprietary, long-lasting InfiniPower technology, combined with LiFePO4 batteries, and impact-resistant structural design, make this compact powerstation a long lasting powerhouse. Add another PowerStation and a total of 12 Expansion Batteries and Expand up 53.8kWh for entire home sustainability! The next generation of Loadside manual transfer switches, works flawlessly with the Anker SOLIX F3800 Plus. The Home Backup Kit (Transfer Switch + Cable) has been specifically tested with the Anker SOLIX F3800 Plus Powerstation and Solar Generator. The Color-Coded Built-In Wattage Meter helps you balance and manage the Anker SOLIX F3800 output distribution.
Power Station Features:
| • | Operates at whisper-quiet levels at all times thanks to an internal chip and intelligent AI algorithm, so you barely know it's on. |
| • | Equipped with an informative LED display that lets you clearly see the cell capacity, current input and output, and estimated time for the Anker SOLIX F3800 Plus to fully recharge. |
| • | Easily control the portable power station right from the convenience of your phone. Through a fast and stable Bluetooth connection, you can view charging time, remaining battery, temperature, and customize your power usage - no Wi-Fi required! |
| • | Expand with the user friendly auxiliary expansion batteries and new and improved 2x 1600W / 165V Solar Input Charge Controllers! |
SPECIFICATIONS
| General Information | |
| Manufacturer Name: | Anker |
| Dimensions: | 27.6" x 15.1" x 14.6" in (with wheels 2.56") |
| Weight: | 132.30 lbs |
| Operating usage temp: | Charging: -20 to 40C / -4 to 104F Recharging: -0 to 40C / 32 to 104F |
| Warranty: | 5 Year Warranty |
| Battery | |
| Cell Type: | LFP (LiFePO4) Battery |
| Cell Capacity: | 3840Wh |
| Battery Cycles: | 3,000+ (to 80% Capacity) |
| Input | |
| AC Input Power: | 120V - 1800W |
| AC Input Charge Time: | 2.67 Hours |
| # of DC Inputs: | 2 |
| Solar Input: | 11-165V - 17A (2x 1,600W Max) |
| Solar Recharge Time | 2 hours (2400W) 3.2 (1200W) |
| Charge Controller Type: | MPPT |
| Solar Panel Max Input Recharge Time | 1.20 Hours |
| Car DC Input: | 120W (32 Hours) |
| Output | |
| Maximum Output: | 6444 Watts |
| Number of Ports: | 14 |
| # of Standard AC Sockets: | 6 |
| Standard AC Rated Power: | 6000W |
| Standard AC Surge Power: | 9000W |
| AC Total Output: | 6000W |
| AC Auto Shut-Off: | Stand By Mode 12 Hours |
| Special AC Socket: | 1x Nema TT-30R (240V) 1x L14-30 (6000W Max, 240V) |
| # of USB-A Output: | 2 |
| USB-A Rated Power (per port): | 5V - 2.4A (12W Max) |
| USB-A Total Output: | 24W |
| # of USB-C Output: | 3 |
| USB-C Rated Power (per port): | 5V - 3A/9V - 3A/15V - 3A/20V - 3A/20V - 5A (100W Max) |
| USB-C Total Output: | 300W |
| USB auto shut-off: | Yes |
| # of Car Outlet: | 1 |
| Car Outlet Rated Power (per port): | 10.8-14V = 10A (120W Max Per Port) |
| 240V Fuel Generator Charging: | Yes |
| Home Backup Kit for The Anker Solix F3800 and F3800 Plus Powerstation | |
| Manufacturer Name: | Anker |
| Dimensions: | 11.75" x 11.75" x 4.5" |
| Weight: | 20 lbs |
| Voltage: | 120V / 240V |
| # of Circuits: | 10 |
| Maximum Watts: | 12500W |
| Circuit Breaker Protection: | Each Circuit |
| Frequency: | 60 Hz |
| Amps: | 50A V240 VAC |
| Enclosure: | NEMA 1R |
| Conduit Length: | 18 |
