Anker SOLIX F3800 Plus + Sub Panel Kit + Expansion Battery - Includes FREE Protective Cover
Anker SOLIX F3800 Plus + Sub Panel Kit + Expansion Battery - Includes FREE Protective Cover
Couldn't load pickup availability

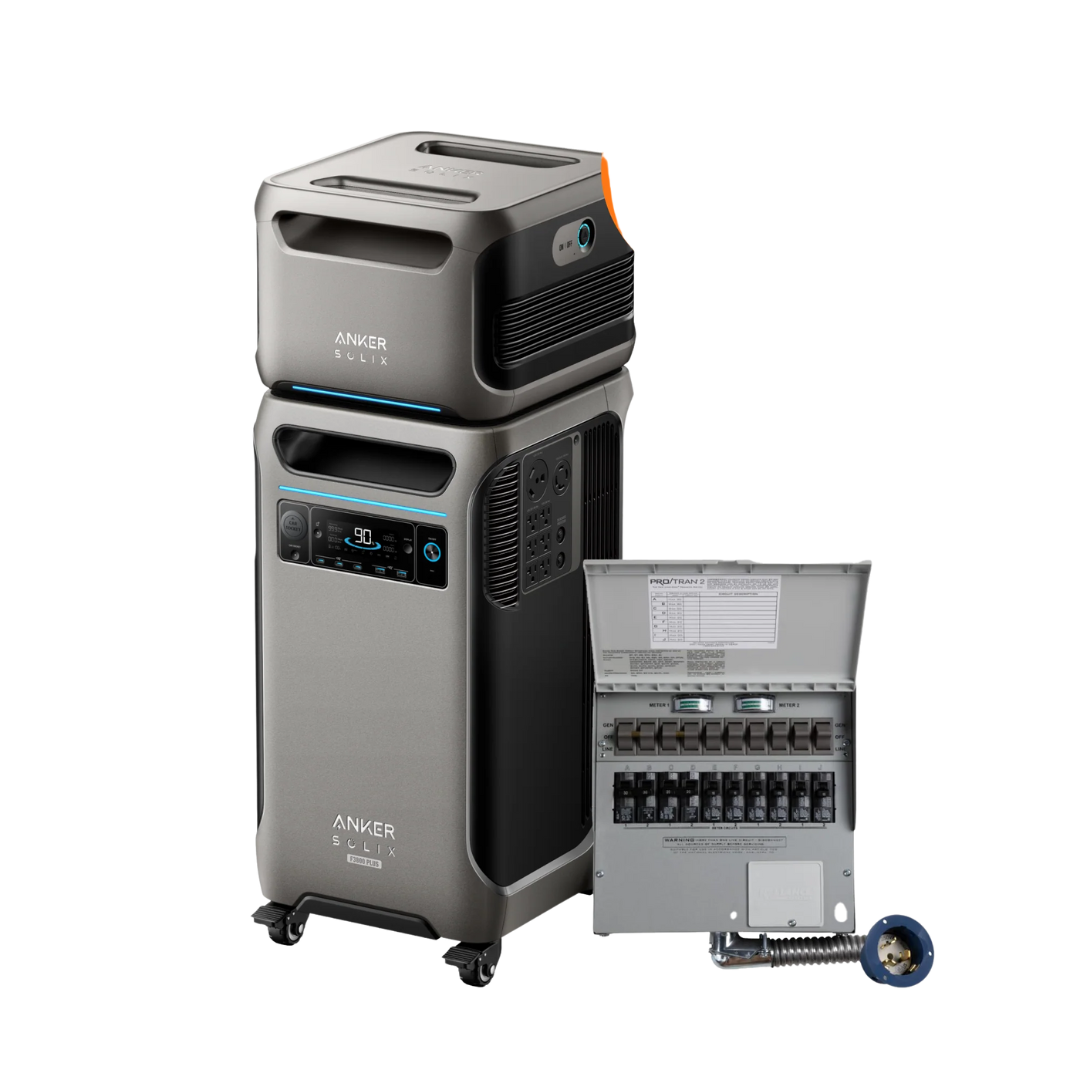

The Anker SOLIX F3800 Plus Automatic Home Power Panel Kit, paired with the F3800 Portable Expansion Battery, delivers powerful and reliable home backup energy using Anker’s proprietary InfiniPower technology. Engineered with long-lasting LiFePO4 batteries, ultra-durable electronic components, and a smart temperature control system that monitors heat up to 100 times per second, this impact-resistant power station is built to endure over a decade of daily use. The kit includes an automatic transfer switch and subpanel, enabling a seamless 30ms switch from grid to backup power. The Anker SOLIX F3800 Portable Expansion Battery adds 3840 watt-hours of energy storage, increasing the capacity of your F3800 system up to 7680Wh per unit. For even greater scalability, you can connect another PowerStation and up to 12 Expansion Batteries, expanding your total energy storage to an impressive 53.8kWh.
Power Station Features:
| • | Operates at whisper-quiet levels at all times thanks to an internal chip and intelligent AI algorithm, so you barely know it's on. |
| • | Equipped with an informative LED display that lets you clearly see the cell capacity, current input and output, and estimated time for the Anker SOLIX F3800 Plus to fully recharge. |
| • | Easily control the portable power station right from the convenience of your phone. Through a fast and stable Bluetooth connection, you can view charging time, remaining battery, temperature, and customize your power usage - no Wi-Fi required! |
| • | Expand with the user friendly auxiliary expansion batteries and new and improved 2x 1600W / 165V Solar Input Charge Controllers! |
First Portable Powerstation that Features AC Coupling:
| • | With the Anker SOLIX F3800 Plus and Home Power Panel you can easily connect to your home power system. Its the first portable power station that features AC coupling, so you can just plug into the grid with Home Power Panel and connect your rooftop panels. This allows you to store excess solar energy for when you need it at night or during emergencies. |
Customizable to Maximize Savings on your Energy Bill:
| • | Get full control of your power via the Anker app to max out your savings. You can charge the Anker SOLIX F3800 Plus when the sunlight is strong or via AC when rates are low. Then power your home at night or during high peak hours. |
SPECIFICATIONS
| General Information | |
| Manufacturer Name: | Anker |
| Dimensions: | 27.6" x 15.1" x 14.6" in (with wheels 2.56") |
| Weight: | 132.30 lbs |
| Operating usage temp: | Charging: -20 to 40C / -4 to 104F Recharging: -0 to 40C / 32 to 104F |
| Warranty: | 5 Year Warranty |
| Battery | |
| Cell Type: | LFP (LiFePO4) Battery |
| Cell Capacity: | 3840Wh |
| Battery Cycles: | 3,000+ (to 80% Capacity) |
| Input | |
| AC Input Power: | 120V - 1800W |
| AC Input Charge Time: | 2.67 Hours |
| # of DC Inputs: | 2 |
| Solar Input: | 11-165V - 17A (2x 1,600W Max) |
| Solar Recharge Time | 2 hours (2400W) 3.2 (1200W) |
| Charge Controller Type: | MPPT |
| Solar Panel Max Input Recharge Time | 1.20 Hours |
| Car DC Input: | 120W (32 Hours) |
| Output | |
| Maximum Output: | 6444 Watts |
| Number of Ports: | 14 |
| # of Standard AC Sockets: | 6 |
| Standard AC Rated Power: | 6000W |
| Standard AC Surge Power: | 9000W |
| AC Total Output: | 6000W |
| AC Auto Shut-Off: | Stand By Mode 12 Hours |
| Special AC Socket: | 1x Nema TT-30R (240V) 1x L14-30 (6000W Max, 240V) |
| # of USB-A Output: | 2 |
| USB-A Rated Power (per port): | 5V - 2.4A (12W Max) |
| USB-A Total Output: | 24W |
| # of USB-C Output: | 3 |
| USB-C Rated Power (per port): | 5V - 3A/9V - 3A/15V - 3A/20V - 3A/20V - 5A (100W Max) |
| USB-C Total Output: | 300W |
| USB auto shut-off: | Yes |
| # of Car Outlet: | 1 |
| Car Outlet Rated Power (per port): | 10.8-14V = 10A (120W Max Per Port) |
| 240V Fuel Generator Charging: | Yes |
| Smart Home Panel | |
| Manufacturer Name: | Anker |
| Wi-Fi: | Supported |
| Input Voltage: | 120/240V |
| Output Voltage: | 240V |
| Max Input Power: | 6,000W |
| Max Output Power: | 12,000W |
| Circuits: | 12 |
| Max Connected Battery Energy: | 53.8KWh |
| IP Code: | 31 |
| Manufacturer Warranty: | 5 Year |
| Anker SOLIX BP3800 Expansion Battery | |
| Manufacturer Name: | Anker |
| Dimensions: | 15.5" x 14.0" x 10.3" in |
| Weight: | 76 lb / 34.5 kg |
| Warranty: | 5 Year Warranty |
