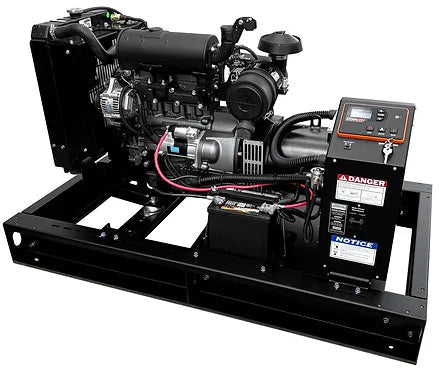

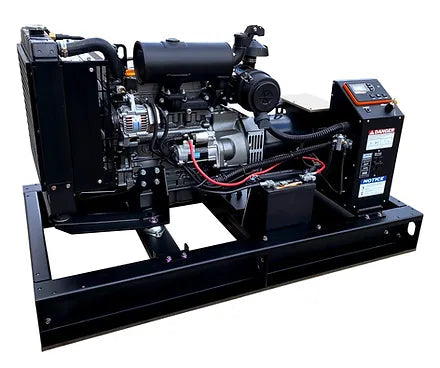

Aurora Generators 12kW Yanmar Diesel Generator/ No Canopy Enclosure - PowerGen USA

THIS SIZE GENERATOR IS PERFECT FOR most homes. 12-13 kW allows you to keep everything running with the limitation of possibly not allowing you to use all your heavy appliances simultaneously. For that, we suggest a larger 20 kW Generator.

JUST TAKE A LOOK AT WHAT YOU GET:

Long Runtime Diesel-powered engines can work hard 24/7 for extended periods - up to 3 weeks if necessary - and still outlast any other type of engine for a fraction of the operating costs.

Reliability

There's a reason the farming, transportation and construction industries have been leveraging the benefits offered by diesel generators for years.

Home Friendly

New stringent emission regulations have produced clean diesel engine options that fit perfectly for home power generation. These strong, reliable long-life diesel engines have become today's preferred choice for home backup power.

Clean and Safe

Diesel fuel is a cleaner fuel that can be safely stored for long periods.

Quieter Running

The higher the RPM, the louder the noise. Our diesel generators run in the 1800 RPM range, unlike non-diesel products that run at 3600.

Low Maintenance

You only need to change the oil and filter every 500 hours instead of every 100 hours for a non-diesel generator.

Cost-Effective

Diesel fuel is the least expensive to run, with natural gas and propane costing much more.

Flexible Warranty

Diesel-powered generators seldom have any restrictions on use and can be used non-stop if needed. The warranty for natural gas, propane and gasoline-powered generators usually only covers emergency standby use.

MANUALS

• Generator Specifications
• Engine Operations Manual
• Alternator Specifications
• Generator CAD Drawings

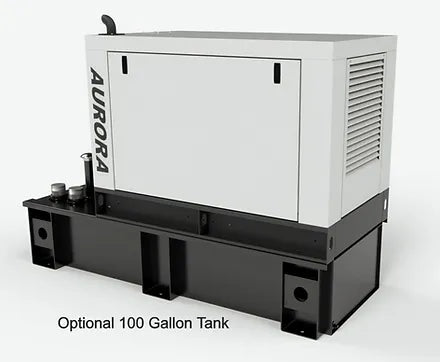

• CAD Drawing - With 100 Gallon Tank
• Controller Manual
• Yanmar Warranty

ACCESSORIES
 • Oil Pan Heater
• Battery Charger
• Remote Monitoring & Control

GUIDES
 • What size generator do I need?
• Wattage Guide (pdf)
• Blog
• See photos of customer installations
• Starting in cold weather

ENGINE SPECIFICATIONS

• Make - Yanmar
• Type - Diesel
• Model - 3TNV88F-UGGE
• RPM - 1800
• Cylinders - 3
• Displacement - 1.64L  / 100 in³
• Gross Power 15.7 kW / 21.1 HP
• Emission - USA EPA Tier 4 Final (requires no DEF)
• Combustion Type - Direct Injection
• Aspiration - Natural
• Governor Type - Mechanical
• Oil Pan Capacity - 6.7 L
• Electrical System - 12 Volt / 40 Amps
• Fuel System - MP2 Fuel Injection Pump
• Cooling System - Water Pump / Fan / Radiator
• Starting Aid - Glow Plugs
• Flywheel - SAE 7.5
• Bell Housing - SAE 4
• Weight kG/lbs - 158/348

ALTERNATOR SPECIFICATIONS

• Manufacture - Meccalte
• Model - ECP28 3S4 C
• Type - Self-regulating Alternator 4 Pole | Dedicated Wiring | Brushless
• Voltage Regulator - DSR
• Precision of voltage regulation - ± 1%
• Output Voltage = 120/240 Volt Single Phase
• Optional 3 Phase 208/480/600 Volt
• Mechanical Protection - Class H Insulation System | IP23

INSTRUMENTATION & CONTROL

• Advanced Generator Controller
• Make - DynaGen
• Model - TG350
• Auto-Start & two-wire remote start compatible.
• Displays voltage, speed, frequency, battery, fuel level, oil pressure, coolant temp, and more.
• 150 Event Log
• Easy to use.
• User re-programmable
• Password Protected

FUEL TANK

• Integral 45L / 12 Gallon Welded Steel Tank
• Electronic Fuel Level Sensor
• Mechanical Fuel Level Sensor
• Vented Fuel Fill / Cap

CONSTRUCTION

• All stainless steel fasteners used.
• Powder-coated steel enclosure
• Powder-coated steel frame
• Vibration Mounts on engine and alternator
• Dimensions -  57" x 33" x 40" (L x W x H)
• Weight - 950 lbs

OTHER

• Includes Battery & Cables
• Includes Temperature Sensor
• Includes Radiator Coolant Level Sensor
