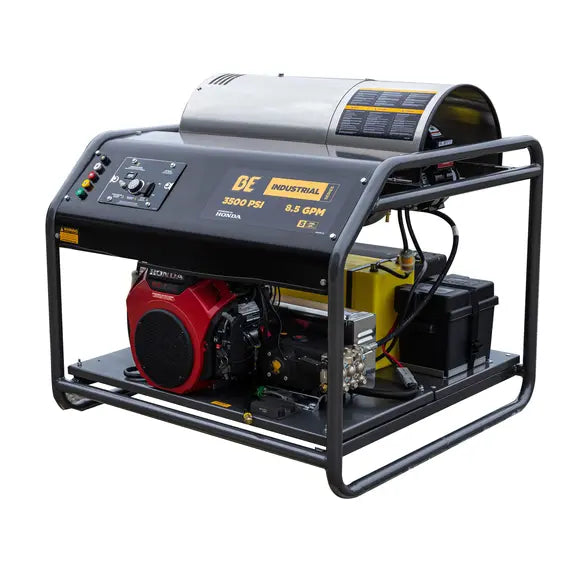

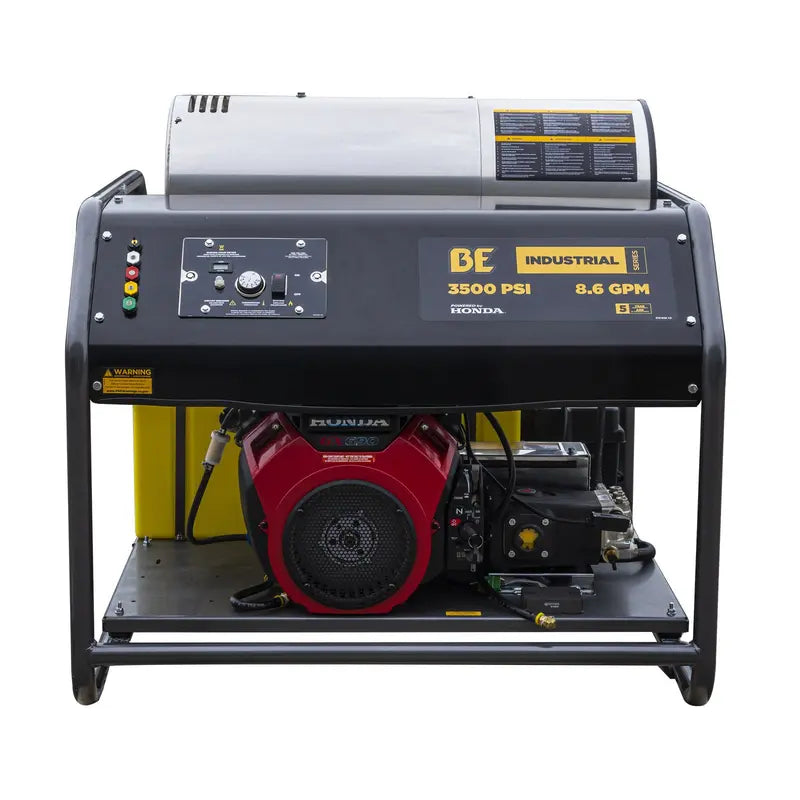

3,500 PSI - 8.5 GPM Hot Water Pressure Washer Honda GX690 Engine and AR Triplex Pump



PART NUMBER:  HW3524HA12V





Powerful Honda GX690 engine with electric start drives the pump. A 55AH Marine battery is included.

Belt drive system provides longest pump life possible by lowering its heat, vibration and RPM.

Industrial grade AR triplex pump featuring reinforced body, forged brass manifold, solid ceramic plungers, stainless steel check valves and thermal release valve.

External unloader provides superior cooling and versatility to further enhance pump life.

Heating coil is ignited by a 12v Beckett burner that is fueled by diesel.

The burner can be turned off and controlled with the adjustable thermostat that can be set up to 93°/200°F.

Industrial grade accessories included are a 50 foot high-pressure hose, spray gun wand assembly, and five spray nozzles.

Powder coated steel frame with 1.5" OD roll cage that is designed to mount onto a truck or a trailer.

Oil drain hoses on the engine and pump allow for easier maintenance with less mess.

The actual product may vary from the images shown on the website.

SHIPPING INFORMATION
WEIGHT: 975LBS
DIMENSIONS (LxWxH): 48"x46"x51"











Specifications



Pump Style:              Triplex

Unloader:                 External

Series:                       Industrial

Engine:                      Honda GX690

Pump:                       AR

CC:                            688

PSI:                           3,500

GPM:                        8.5
