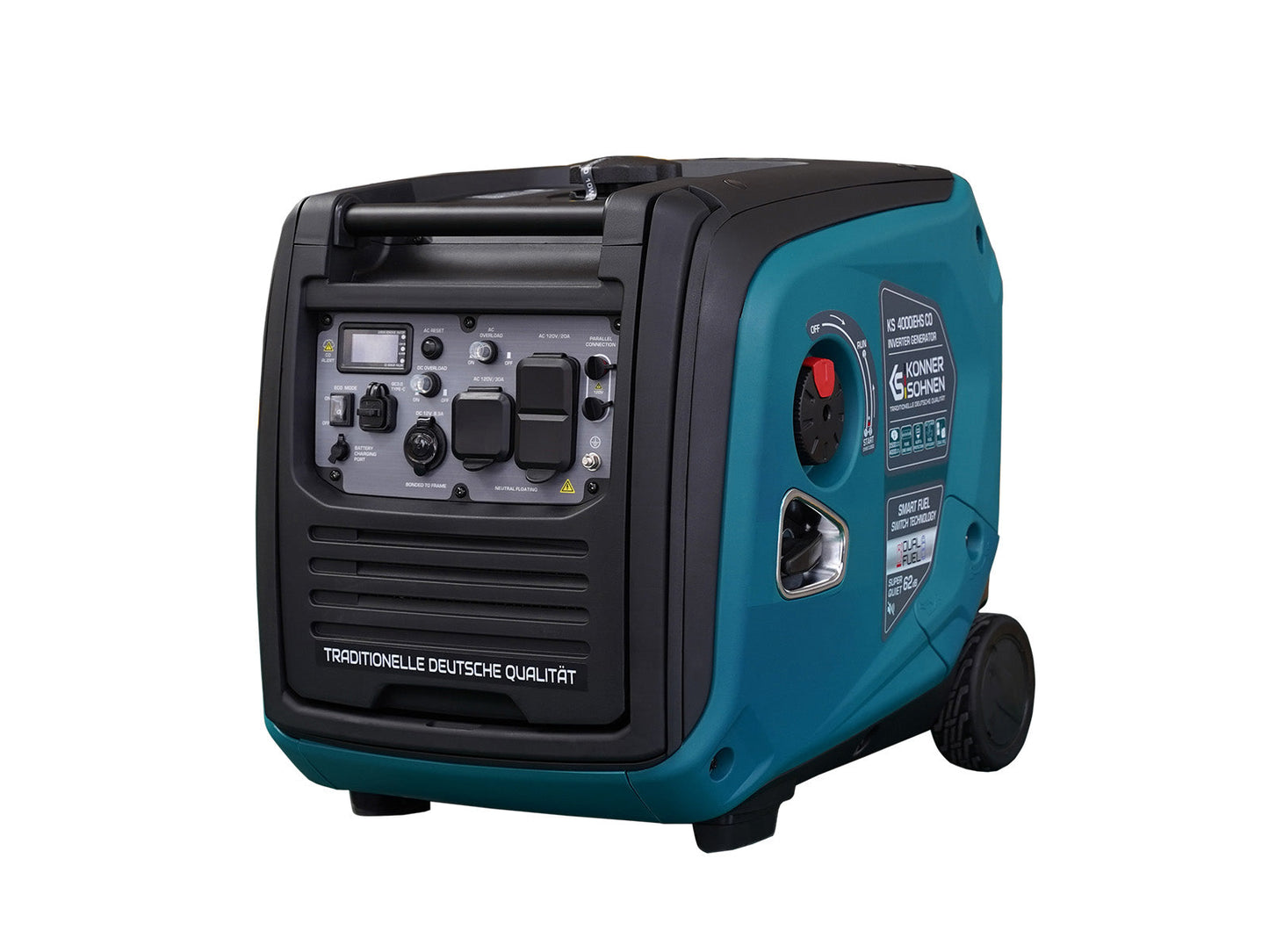

Konner-Sohnen LPG/Gasoline inverter generator KS 4000iEHS CO

Features

The KS 4000iEHS CO LPG/gasoline inverter generator of the German brand Könner & Söhnen® is a convenient source of electric power with a low noise level. One of the main features of this model is that it produces electric current with the pure sine wave.

PURE SINE WAVE

The built-in electronic unit with microprocessor control monitors the operation of the generator and provides a stable output voltage of 120V 60Hz sinusoidal form, which is suitable for the reliable operation of sensitive electronics.

LPG/PETROL

The generator runs on both gasoline and liquefied gas (propane) and includes everything necessary for using LPG as fuel: a hosepipe with a reducer for connecting a gas cylinder, which provides a reliable connection.

VERSATILITY OF USE

You can use generator with both a portable gas cylinder and with a stationary capacity for gas storage (gasholder). Connection has to be made by a certified specialist. The pressure in the supply system must not exceed 16 Bar.

LOW NOISE LEVEL

Thanks to a special protective housing, which provides a minimum noise level (LpA 62 dB, 23 ft.), the operation of the device will be as comfortable as possible and will not disturb others.

ROBUST ENGINE

The reliable proprietary K&S engine is characterized by increased wear resistance, long-term and stable operation. K&S engine meets modern emission standards and has a reduced level of harmful substances in exhaust gases, which protects the environment and your health. Generator as well is equipped with CO sensor, which monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If increased level of CO gas is detected, the CO Sensor automatically shuts down the engine.

ECO MODE

The ergonomic control panel is equipped with a fuel eco mode switch. This mode reduces fuel consumption by up to 50% at small loads due to lower engine revolutions.

MULTIFUNCTION ENGINE SWITCH 3-IN-1

Universal engine switch for the easiest and most convenient start of the generator combines the functions of a fuel valve, an air choke, and an electric engine start.

ERGONOMIC CONTROL PANEL

Ergonomic control panel is equipped with multifunction LED display, ECO MODE switch, typical 12 V car socket, generator parallel connection output for double power as well as RESET button for resetting the control system (upon tripping of the circuit breaker) and restoring power supply.

HIGH QUALITY ALTERNATOR

Könner & Söhnen inverter generators are equipped with a robust brushless alternator with 100% copper winding. The high-end compact permanent magnet alternator is housed in a plastic casing and can withstand maximum loads without any damage to ensure long-term and reliable operation of the generator set.

PARALLEL CONNECTION

Parallel connection ensures insreased power. Using a parallel connection device connected to a special socket on the generator, you can pair the generators and connect devices with greater power. It is suitable for all Könner & Söhnen inverter generators which are parallel ready (KS 2000iS CO, KS 2000iHS CO, KS 4000iEHS CO)

TRANSPORTATION KIT

Könner & Söhnen Inverter generators are equipped with a transport system for easy movement. Two wheels and a handle that lifts when the generator is moved ensure comfortable transportation and mobility.

ADDITIONAL ACCESSORIES

Generator is equipped with additional accessories: spark plug wrench, hosepipe with pressure reducer, PH2 screwdriver 0.24 in (6.0 mm), filling funnel.

Characteristics

• Voltage, V: 120
• Starting watts, W: 4000 (LPG operation reduces generator power by 10%)
• Running watts, W: 3500 (LPG operation reduces generator power by 10%)
• Frequency, Hz: 60
• Current (max), A: 33
• Outlets: 2 x 20A, 1 x 30A
• Engine start: recoil/electric
• Fuel tank volume: 12 gal.
• Carbon monoxide shutoff: +
• Run time @50% (gasoline), h: 7.8 (Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.)
• LED display: output power, frequency, voltage, working hours, fuel level; CO sensor failure, carbon monoxide shutoff, low oil alarm, overload alarm, output indicator
• Noise level Lpa (23 ft.)/Lwa, dB: 62/87
• Power output DC, V/A: 12V/8.3A
• QC3.0 Type-C: +
• Engine model: KS 240i-H
• Engine cylinder volume, cc: 223
• Engine type: LPG/gasoline powered one-cylinder, four-stroke air-cooled
• Engine power, hp: 7.5
• Possibility of parallel connection: +
• Crank case volume: 20 fl. oz (0.6L)
• Accumulator, A·h: 1.6
• Protection class: IP23M
• Alternator winding: Copper
• Gross dimensions (LxWxH): 27.5” x 18.7” x 22.4”
• Net weight, lbs: 88
• EAN code: 4260405366637
