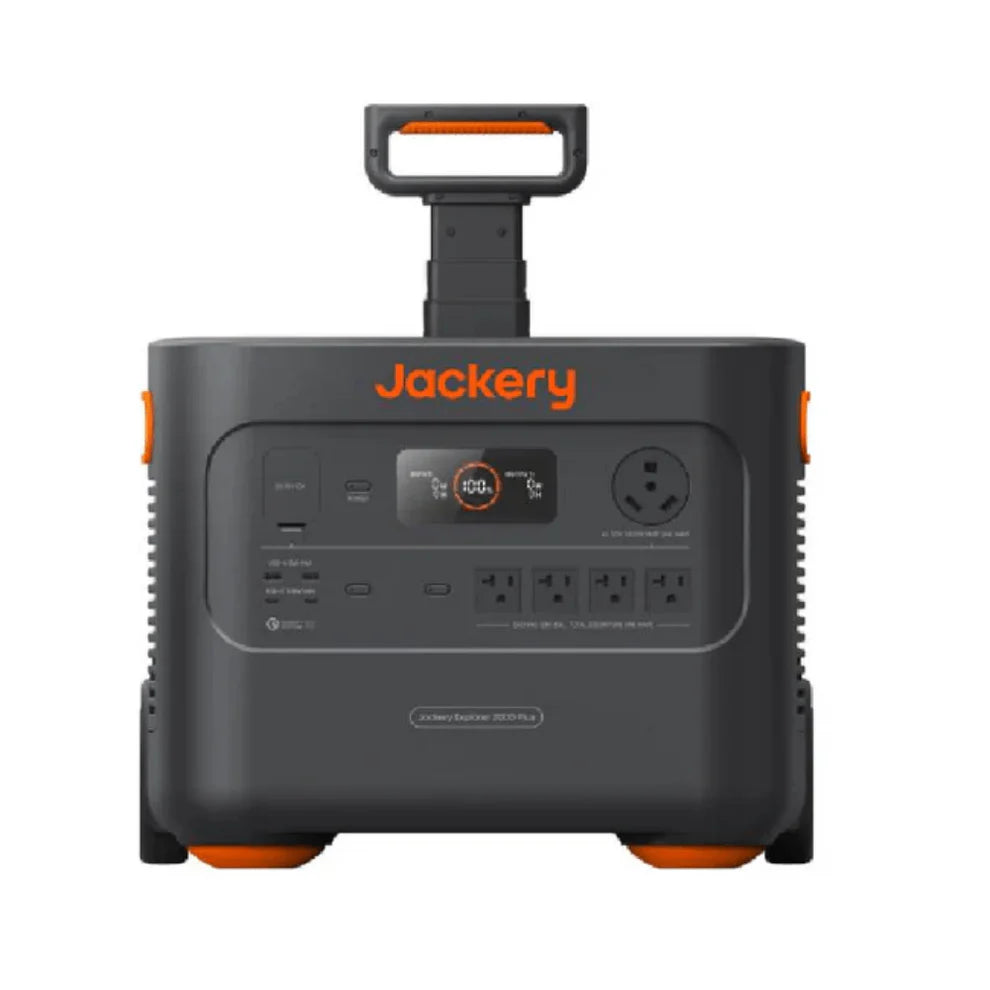

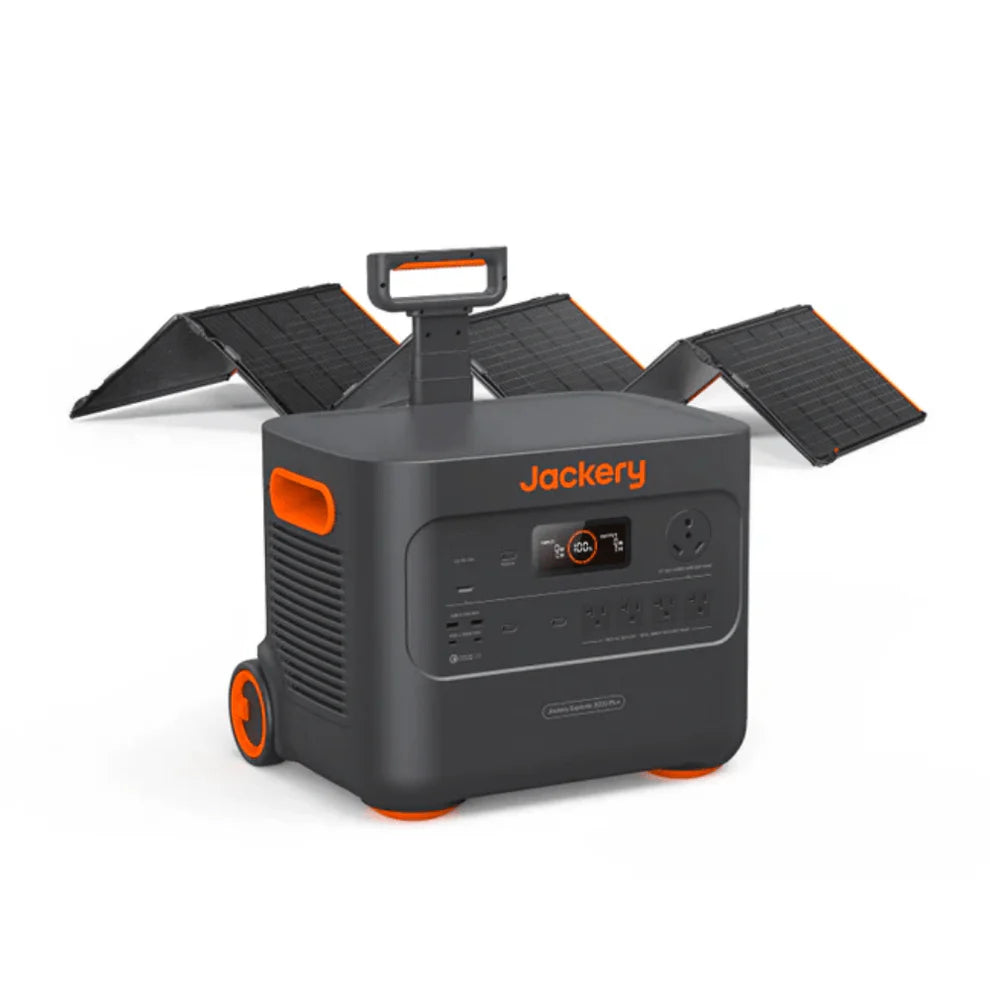

Jackery Explorer 2000 Plus Portable Power Station + 1x SolarSaga 500 X

Jackery Explorer 2000 Plus Portable Power Station + 1x SolarSaga 500 X

Sku: 60-200050-US00029





Expandable Power. Extreme Performance. Meet the Jackery Explorer 2000 Plus Portable Power Station + SolarSaga 500 X

The Jackery Explorer 2000 Plus Portable Power Station + SolarSaga 500 X is a modular, heavy-duty power solution designed for serious backup, off-grid living, and versatile outdoor energy needs. With expandable capacity from 2 to 24 kWh and lightning-fast solar charging, it powers everything from small appliances to heavy-duty tools—even in rugged, extreme conditions.















Features and Benefits:

• Expandable Capacity: Customize your setup from 2 kWh to 24 kWh, perfect for everything from weekend trips to whole-home backup.
• High Power Output: Supports up to 6000W output in parallel with 120V/240V expandability for high-demand appliances.
• Rapid Solar Charging: Advanced IBC solar technology delivers a full charge in just 2 hours, using six 85W panels included in the SolarSaga 500 X.
• Long-Lasting LiFePO4 Battery: Engineered for over 10 years of reliable performance, even with daily use.
• ChargeShield Fast Charging: Proprietary variable-speed charging algorithm extends battery lifespan by up to 50%.
• Rugged and Weather-Resistant: IP68 waterproof rating and performance range from -40°C to 85°C make it ideal for all climates.
• Portable and Modular: Easy-to-carry, all-in-one design with DIY modular assembly for flexible deployment in any scenario.
• System Compatibility: SolarSaga 500 X is also compatible with Jackery Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 v2 models.
• Connection Guidance: Do not connect more than six 85W panels to one DC8020 port. Extend distance with optional Jackery Anderson Extension Cable.
• Warranty Coverage: Includes a 3-year warranty on the power station, 5-year warranty on solar panels, plus a 2-year extended power station warranty.
• For clean, scalable energy when and where you need it, the Jackery Explorer 2000 Plus Portable Power Station + SolarSaga 500 X is the all-in-one solution built for maximum power, flexibility, and peace of mind.







SPECIFICATIONS

Jackery Explorer 2000 Plus Portable Power Station

Category	Specification
General
Weight	61.5 lbs (27.9 kg)
Dimensions	18.6 x 14.1 x 14.7 in / 47.3 x 35.94 x 37.36 cm
Charge Temperature	32113 °F (045°C)
Discharge Temperature	14113 °F (-1045°C)
Warranty	3-Year Warranty + 2-Year Extended Warranty
Battery
Capacity	45.6Ah / 44.8V DC (2042.8 Wh)
Cell Chemistry	LiFePO4
Cycle Life	4000 cycles to 70%+ capacity
Output Ports
AC Output	(4x) 120V ~ 60Hz, 20A Max(1x) 120V ~ 60Hz, 25A Max
AC Total Output	3000W Max, 6000W Surge Peak
USB-C Output	(2x) 100W Max: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
USB-A Output	(2x) Quick Charge 3.0, 18W Max: 5–6V⎓3A, 6–9V⎓2A, 9–12V⎓1.5A
Car Port	12V⎓10A Max
AC Expansion Port	120V ~ 60Hz, 25A Max
DC Expansion Port	32.2V–50.4V⎓97A Max
Input Ports
AC Input (Charge Mode)	120V ~ 60Hz, 15A Max
AC Input/Output (Bypass)	120V ~ 60Hz, 12A Max
DC Input	(2x) DC 8mm Ports: 11–17.5V⎓8A Max (Double to 8A Max);17.5–60V⎓12A Max (Double to 24A / 1400W Max)
Charging Time
AC Adapter	2 Hours
Car Adapter (12V)	25 Hours
Solar Charging	4.8 Hours



Jackery SolarSaga 500 X

Category	Specification
General
Weight	22.05 lbs ± 2.20 lbs (10.5 kg ± 0.5 kg)
Protection Class	Class II
Waterproof Rating	IP68
Operating Temperature Range	-40185℉ (-4085℃)
Warranty	5 Years
Electrical Performance – STC	(Standard Test Conditions)
Peak Power (Pmax)	500W ± 5%
Open Circuit Voltage (Voc)	48.5V ± 5%
Short Circuit Current (Isc)	13.02A ± 5%
Power Voltage (Vmp)	41.7V ± 5%
Power Current (Imp)	12.0A ± 5%
Electrical Performance – BNPI	(Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
Peak Power (Pmax)	545W ± 5%
Open Circuit Voltage (Voc)	49.2V ± 5%
Short Circuit Current (Isc)	13.86A ± 5%
Power Voltage (Vmp)	42.5V ± 5%
Power Current (Imp)	12.84A ± 5%
Bifaciality Coefficient	Pmax > 80%, Voc > 97%, Isc > 80%
Voltage Temp. Coefficient	-0.26%/°C
Power Temp. Coefficient	-0.32%/°C
Max System Voltage	600V DC
Max Reverse Current	15A
Dimensions
Folded	Approx. 39.21 × 20.71 × 3.82 in (996 × 526 × 97 mm)
Unfolded	Approx. 98.15 × 39.21 × 11.57 in (2493 × 996 × 294 mm)
