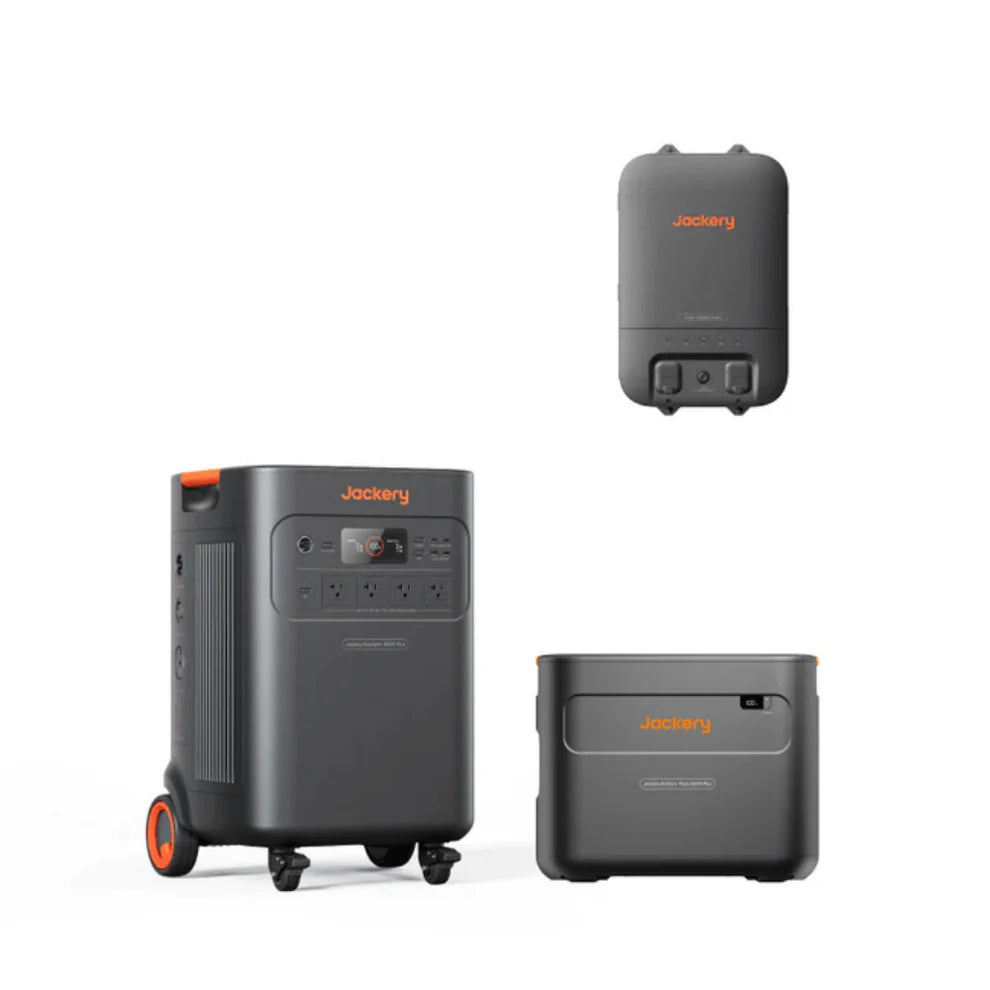

Whole-Home Backup Power Starts Here: Jackery Explorer 5000 Plus + 5000 Plus Battery Pack + Smart Transfer Switch
Experience uninterrupted, scalable, and intelligent power with the Jackery Explorer 5000 Plus + 5000 Plus Battery Pack + Smart Transfer Switch. Built for whole-home energy independence, this high-capacity solution delivers seamless backup, smart control, and extended runtime during outages, emergencies, or off-grid living. Designed for flexibility and power-hungry demands, it's the most advanced residential backup system Jackery has ever built.
FEATURES SUMMARY
Large capacity for fridge and Wi-Fi router: 5-60kWh capacity supports multiple devices for up to 30 days. Power your freezer or dryer effortlessly: 7200-14400W output handles heavy-power devices with ease.
After 3 months, 96.8% power left. After 1 year, only 92.5% power left. Guaranteed power during power outages caused by storms, high temperatures, or earthquakes. Ensure readiness during emergencies
Features and Benefits:
- Massive Power Capacity: The Explorer 5000 Plus and companion Battery Pack deliver a combined 10 kWh of LiFePO4 energy storage for powering your entire home.
- Expandable System: Easily add more battery packs to scale capacity up to 40 kWh to fit long-term backup or off-grid needs.
- Seamless Power Transfer: The Smart Transfer Switch ensures automatic switchover to battery power within milliseconds—keeping lights, refrigerators, medical equipment, and routers running without disruption.
- Smart App Control: Monitor usage, check status, and manage energy from anywhere with Jackery’s mobile app.
- Durable, Long-Life Battery: Premium LiFePO4 battery chemistry ensures 4000+ cycles for reliable use over 10+ years.
- Eco-Friendly and Silent: Delivers clean, quiet power with no fumes, noise, or fuel required.
- All-in-One Backup Kit: The Jackery Explorer 5000 Plus + 5000 Plus Battery Pack + Smart Transfer Switch offers complete peace of mind in a single, easy-to-use package.
- Perfect for emergency readiness or sustainable energy independence, this kit turns your home into a resilient power hub—ready for anything.
SPECIFICATIONS

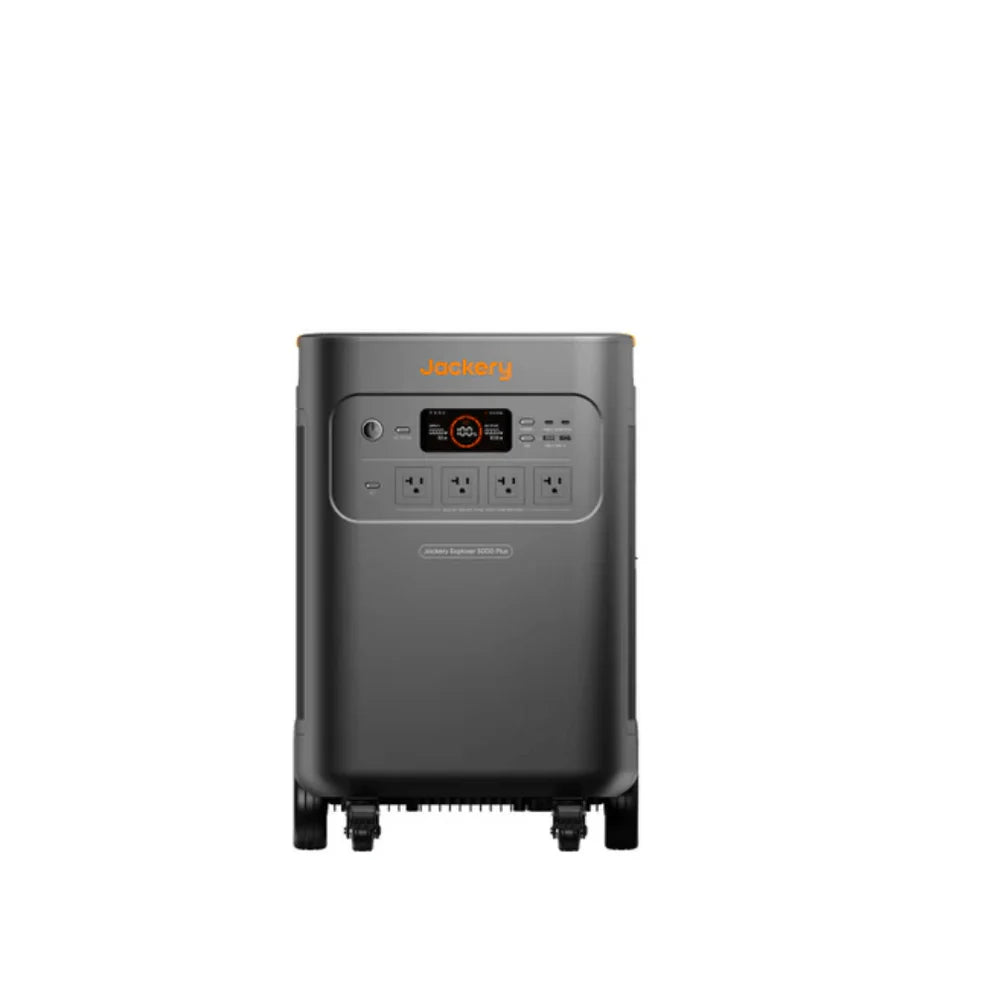

Jackery Explorer 5000 Plus
| Category | Specification |
|---|---|
| General | |
| Weight | About 134.5 lbs (61 kg) |
| Dimensions | 16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm |
| Charge Temperature | 32 |
| Discharge Temperature | 5 |
| Warranty | 5 Years |
| Battery | |
| Capacity | 45Ah / 112V DC (5040 Wh) |
| Cell Chemistry | LiFePO4 |
| Cycle Life | 4000 cycles to 70%+ capacity |
| Output Ports | |
| AC Output | (4x) 120V, 20A, 2400W (1x) NEMA L14-30R/14-50: 120V/240V ~ 60Hz, 30A, 7200W Max |
| AC Total Output | 7200W Max, 14400W Surge |
| USB-C Output | (2x) 100W Max: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A |
| USB-A Output | (2x) 18W Max: 5–6V⎓3A, 6–9V⎓2A, 9–12V⎓1.5A |
| Car Port (Cigarette) | 12V⎓10A |
| AC Expansion Port | 240V ~ 60Hz, 30A, 7200W |
| DC Expansion Port | 80.5V–126V⎓41A Max |
| Input Ports | |
| AC Input (Charge Mode) | 120V ~ 60Hz, 15A Max |
| AC Input/Output (Bypass) | 120V ~ 60Hz, 12A Max240V ~ 60Hz, 16.7A Max |
| AC Expansion Port (Input) | 240V ~ 60Hz, 16.7A Max |
| DC Expansion Input | 80.5V–126V⎓98A Max |
| High-PV Input | 135V–450V⎓15A Max |
| Low-PV Input | (2x) DC 8mm Ports: 16–60V⎓10.5A Max (Double to 21A / 1200W Max)11–16V⎓8A Max (Double to 8A Max) |
| Charging Time | |
| AC Adapter | 3.5 Hours |
| Car Adapter | Not Supported |
| Other Specifications | |
| UPS | Backup: <20ms, Online: 0ms |
| Inverter Topology | Non-isolated |
| Power Factor | ≥0.98 |
| Entire Unit Type | Type 1 |
Jackery Battery Pack 5000 Plus
| Category | Specification |
|---|---|
| General | |
| Capacity | 45Ah / 112V DC (5040 Wh) |
| Weight | About 81.57 lbs (37 kg) |
| Dimensions | 16.5 × 13.5 × 13.2 in / 41.8 × 34.4 × 33.6 cm |
| Battery Lifecycles | 4000 cycles to 70%+ capacity |
| Warranty | 5 Years |
| Charge Temperature | 32 |
| Discharge Temperature | 5 |
| Ports | |
| DC Expansion Port Input | 80.5V–126V⎓41A Max |
| DC Expansion Port Output | 80.5V–126V⎓98A Max |
Jackery Smart Transfer Switch
| Category | Specification |
|---|---|
| General | |
| Dimensions | 22 × 14.7 × 7.87 in / 56 × 37.4 × 20 cm |
| Weight | About 25.57 lbs (11.6 kg) |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Ports | |
| AC Voltage (Nominal) | 120V / 240V ~ 60Hz |
| Feed-In Type | Split Phase |
| Max Input Current | 100A (Grid) / 60A (Power Station) |
| Max Output Current | 60A (Home Load) / 33.4A (Power Station) |
| Max Input Short-Circuit Current | 10KA |
| Overvoltage Category | IV |
| UPS | ≤20ms |
| Enclosure Type | NEMA Type 1 |
| Number of Load Branches | 12 |
| Main Circuit | 2 AWG |
| Branch Circuit | 14 AWG, 12 AWG, 10 AWG |
| Communication | Wi-Fi and Bluetooth |
WHAT'S IN THE BOX
- Jackery Explorer 5000 Plus Portable Power Station (5184Wh capacity)
- Jackery 5000 Plus Battery Pack (5184Wh capacity)
- Smart Transfer Switch
- AC Wall Charger
- Solar Input Cables
- User Manual
