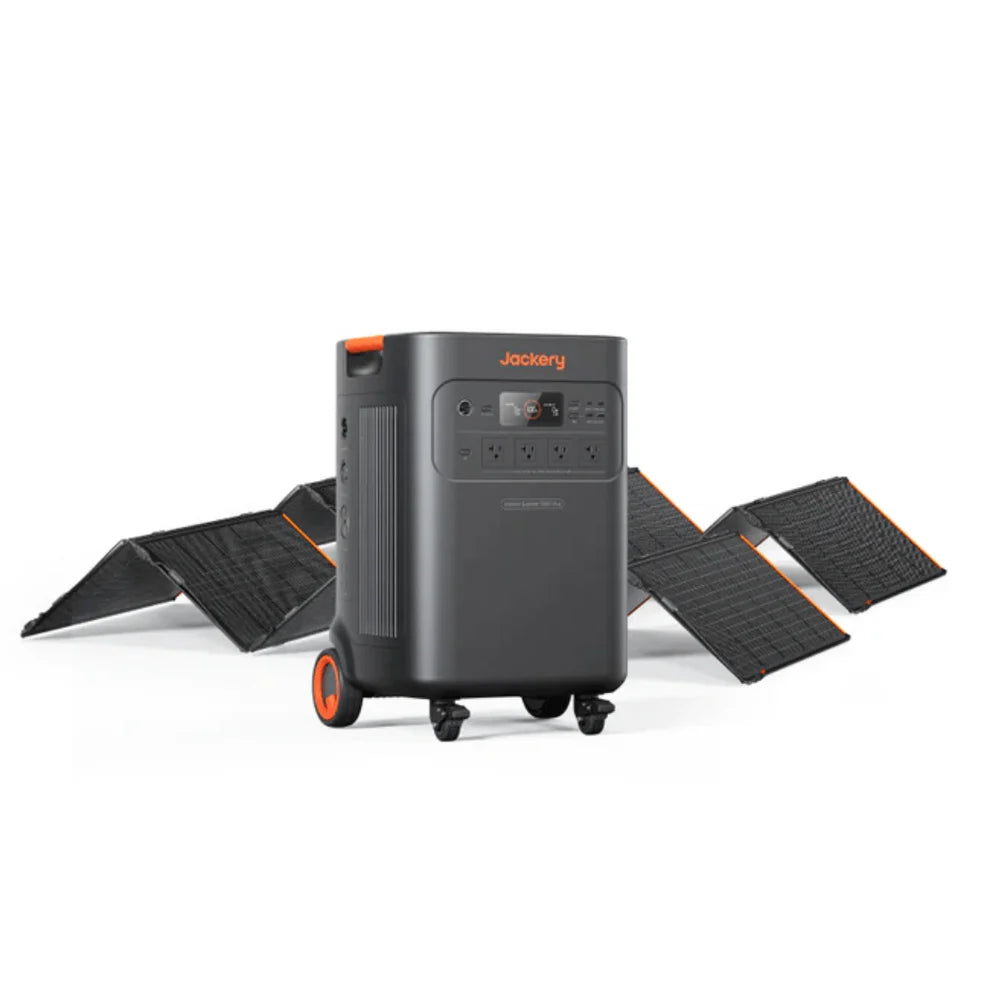

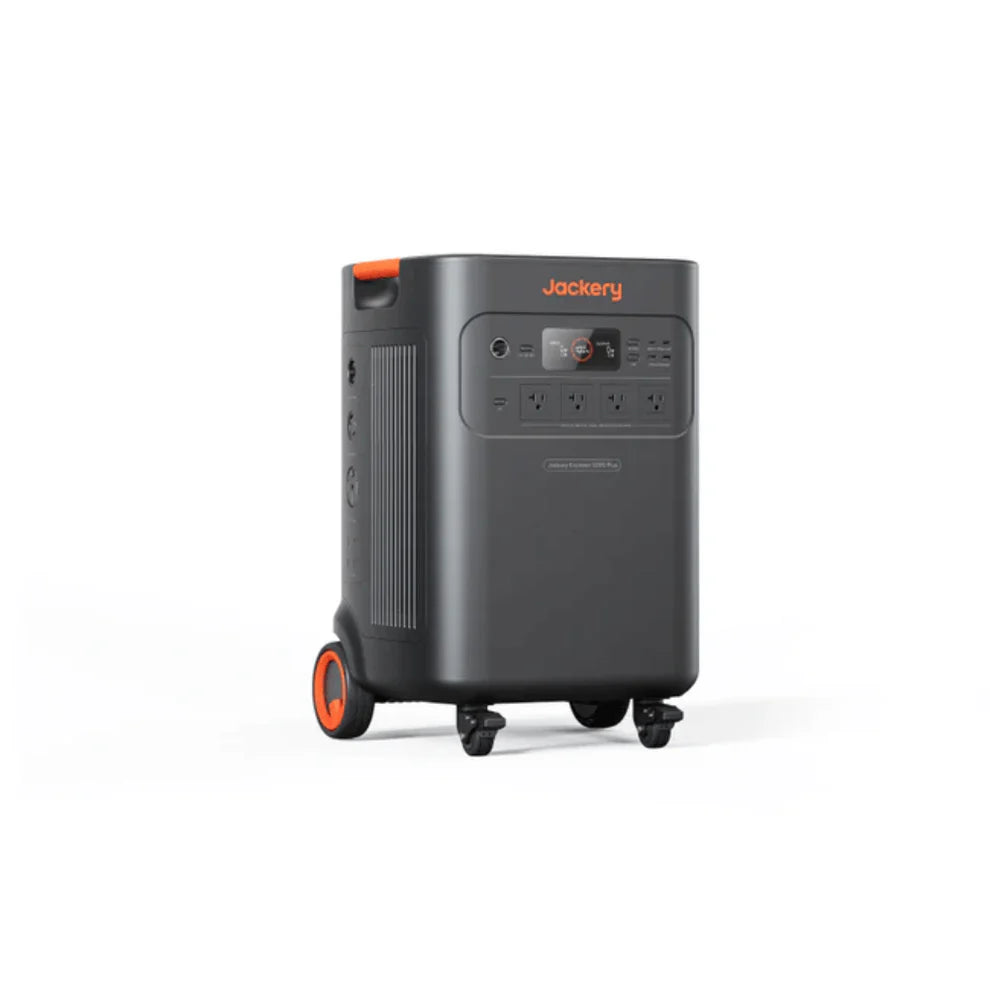

Jackery Explorer 5000 Plus + Solar Saga 500X x 2

Jackery Explorer 5000 Plus + Solar Saga 500X x 2

Sku: 60-5050-USA1A1



Keep your home and appliances running during emergencies with the Jackery Explorer 5000 Plus + Solar Saga 500X x 2. This high-capacity solar generator delivers 5,184Wh of clean energy and supports dual voltage output (120V/240V) for home appliances, servers, and essential devices. With smart app control, rapid solar charging, and a seamless 0ms UPS switch, this kit provides reliable, eco-friendly power while keeping you connected during blackouts or off-grid adventures.













Features and Benefits

• Massive Power Capacity: Offers 5–60kWh of expandable energy for long-lasting backup, ensuring refrigerators, computers, and home electronics remain operational.
• Dual Voltage Output: Supports both 120V and 240V, making it compatible with a wide range of home appliances and equipment.
• Multiple Output Ports: Includes 12 output ports to charge and power several devices simultaneously.
• Seamless UPS Switch: 0ms switchover keeps sensitive electronics like routers, medical devices, and servers running without interruption.
• Smart App Control: Monitor energy usage, battery levels, and system performance remotely for easy energy management.
• Eco-Friendly and Safe: Zero-emission design allows safe indoor use while minimizing your environmental footprint.
• Fast Solar Charging: Two included 500W SolarSaga 500X panels enable efficient solar recharging for uninterrupted power.
• Robust Warranty: 5-year coverage ensures peace of mind and long-term reliability.







SPECIFICATIONS

Component	Category	Specification
Battery	Capacity	45Ah / 112V DC (5184Wh)
	Cell Chemistry	LiFePO4
	Cycle Life	4000 cycles to 70%+ capacity
Ports	AC Output (Main)	NEMA L14-30R/14-50, 120V/240V~60Hz, 30A, 7200W Max
	AC Total Output	7200W Max, 14400W Surge
	AC Output (x4)	120V, 20A, 2400W
	USB-A Output (x2)	18W Max (5–6V ⎓ 3A, 6–9V ⎓ 2A, 9–12V ⎓ 1.5A)
	USB-C Output (x2)	100W Max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A)
	Cigarette Lighter Port	12V ⎓ 10A
	AC Expansion Port (Output)	240V~60Hz, 30A, 7200W
	DC Expansion Port (Output)	80.5V–126V ⎓ 41A Max
	Charge Mode AC Input	120V~60Hz, 15A Max
	Bypass AC Input/Output	120V, 12A Max; 240V, 16.7A Max
	AC Expansion Port (Input)	240V~60Hz, 16.7A Max
	DC Expansion Port (Input)	80.5V–126V ⎓ 98A Max
	High-PV	135V–450V ⎓ 15A Max
	Low-PV	2 × DC 8mm, 16–60V ⎓ 10.5A Max (Double to 21A/1200W Max); 11–16V ⎓ 8A Max (Double to 8A Max)
Dimensions	Weight	134.5 lbs (61 kg)
	Height	16.5 in (41.8 cm)
	Width	15.5 in (39.5 cm)
	Length	25 in (63.5 cm)
General	Warranty	5 Years
	Charge Temperature	0–45°C (32–113°F)
	Discharge Temperature	-15–45°C (5–113°F)
	UPS	Backup UPS: <20ms, Online UPS: 0ms
	Inverter Topology	Non-isolated
	Power Factor	≥0.98
	Unit Type	Type 1
SolarSaga 500X Panels (x2)	Peak Power	500W each
	Dimensions	Folded: 21 × 25 × 2 in; Unfolded: 21 × 91 × 1 in
	Weight	46 lbs (21 kg) total
	Material	Monocrystalline Silicon Solar Cells
	Waterproof	IP67
	Efficiency	24.3%
	Warranty	2 + 1 Years
	Operating Temp	-10–65°C (14–149°F)







WHAT'S IN THE BOX

• 1 × Jackery Explorer 5000 Plus Portable Power Station (5184Wh)
• 2 × Jackery SolarSaga 500X Solar Panels (500W each)
• AC Wall Charger
• Solar Charging Cables
• User Manual
