Jackery
Explorer 5000 Plus + SolarSaga 500 X x 2 + Smart Transfer Switch
Explorer 5000 Plus + SolarSaga 500 X x 2 + Smart Transfer Switch
Couldn't load pickup availability

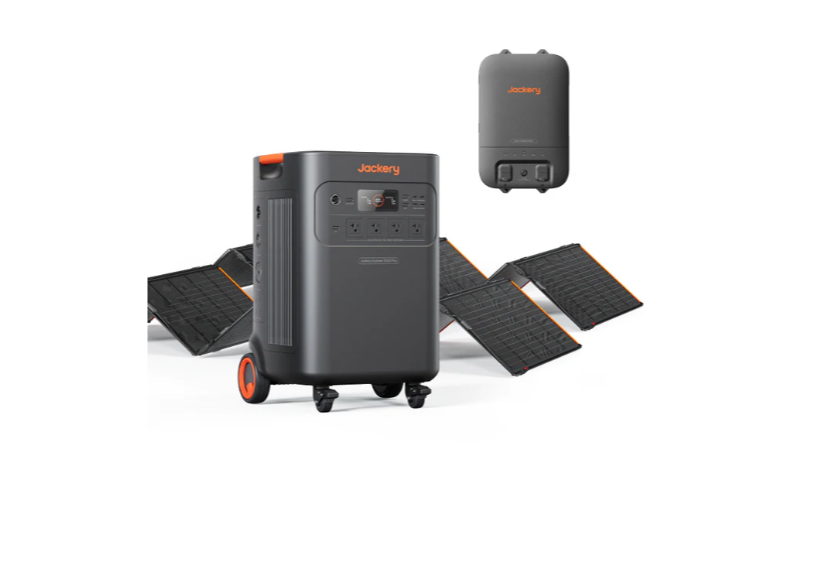

Explorer 5000 Plus + SolarSaga 500 X x 2 + Smart Transfer Switch
- No More Spoiled Food or Wet Clothes Even During Hurricanes, Thunderstorms, and Blackouts: 5-60kWh capacity & 7200-14400W output supports multiple devices for up to 30 days
- Your Fridge Stays Cold, Your Zoom Call Stays On: 0ms Power Transition, Zero Worries
- Always Power Your Essential Rooms: Smart Transfer Switch Ensures Uninterrupted Power Where It Matters Most, Learn More >
- From Indoors to Outdoors: 120V/240V Dual Voltage Enhances Compatibility, Supporting More Loads and More Scenarios
- Fully Charged in 1.7 Hours: 4000W Solar Input, 5 Ways to Charge, Never Run Out of Power

Jackery Explorer 5000 Plus offers eco-friendly home backup with 5-60kWh capacity and dual voltage output (120V/240V). It can power multiple appliances during outages with 12 output ports, 7200-14400W output, and a 0ms UPS seamless switchover for essential devices like fridges, computers, and routers. Connecting your essential circuits via the Smart Transfer Switch will also allow you to power your rooms seamlessly during an emergency. Smart app control and multiple charging options add convenience, while its zero-emission design ensures safe indoor use.


Large capacity for fridge and Wi-Fi router: 5-60kWh capacity supports multiple devices for up to 30 days.
Power your freezer or dryer effortlessly: 7200-14400W output handles heavy-power devices with ease.

0 ms Online Mode: Zero Downtime for sensitive devices - Automotic and high-quality power transfer keeps desktop PC, Wi-Fi router, NAS, and other sensitive devices running without a flicker.
20 ms Backup Mode: Uninterrupted power and uninterrupted performance for home essentials - Consumes less energy than Online Mode, while 20ms switching keeps fridges, lights, and fans running smoothly, ensuring a nearly unnoticeable transition for most essential appliances.²
SPECIFICATIONS
Jackery Explorer 5000 Plus Portable Power Station
Category | Specification |
---|---|
Weight | About 134.5 lbs (61 kg) |
Dimensions | 16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm |
Charge Temp | 32 |
Discharge Temp | 5 |
Warranty | 5 Years |
Battery Capacity | 45Ah / 112V DC (5040Wh) |
Battery Chemistry | LiFePO4 |
Cycle Life | 4000 cycles to 70%+ capacity |
Type | Specification |
---|---|
AC Output (x4) | 120V, 20A, 2400W each |
AC Output (NEMA) | 120V/240V~60Hz, 30A, 7200W Max |
AC Total Output | 7200W Max, 14400W Surge |
USB-C Output (x2) | 100W Max, 5V⎓3A to 20V⎓5A |
USB-A Output (x2) | 18W Max, 5-12V⎓1.5-3A |
Cigarette Lighter Port | 12V⎓10A |
AC Expansion Port | 240V~60Hz, 30A, 7200W |
DC Expansion Port | 80.5V-126V⎓41A Max |
Type | Specification |
---|---|
Charge Mode AC Input | 120V~60Hz, 15A Max |
Bypass Mode AC Input/Output | 120V |
AC Expansion Port (Input) | 240V~60Hz, 16.7A Max |
DC Input | 80.5V-126V⎓98A Max (Expansion), High PV: 135V-450V⎓15A Max, Low PV: 2×DC 8mm Ports (21A/1200W Max) |
AC Charge Time | 3.5 Hours |
Solar Charge Time | 6.5–8.5 Hours |
UPS Response Time | Backup: <20ms, Online: 0ms |
Power Factor | ≥0.98 |
Jackery SolarSaga 500X (x2)
Category | Specification |
---|---|
Weight | 22.05 ± 2.20 lbs (10.5 ± 0.5 kg) |
Protection Class | Class II |
Waterproof | IP68 |
Operating Temp | -40 |
Warranty | 5 Years |
Metric | Specification |
---|---|
Peak Power (Pmax) | 500W ±5% |
Open Circuit Voltage | 48.5V ±5% |
Short Circuit Current | 13.02A ±5% |
Power Voltage (Vmp) | 41.7V ±5% |
Power Current (Imp) | 12.0A ±5% |
Metric | Specification |
---|---|
Peak Power (Pmax) | 545W ±5% |
Open Circuit Voltage | 49.2V ±5% |
Short Circuit Current | 13.86A ±5% |
Power Voltage (Vmp) | 42.5V ±5% |
Power Current (Imp) | 12.84A ±5% |
Jackery Smart Transfer Switch
Category | Specification |
---|---|
Dimensions | 22 × 14.7 × 7.87 in (56 × 37.4 × 20 cm) |
Weight | 25.57 lbs (11.6 kg) |
Operating Temp | -4°F |
UPS Response | ≤20ms |
Communication | Wi-Fi and Bluetooth |
Enclosure Type | NEMA Type 1 |
Load Branches | 12 |
AC Voltage (Nominal) | 120V/240V~ 60Hz |
---|---|
Feed-In Type | Split Phase |
Max Input Current | 100A Grid / 60A Power Station |
Max Output Current | 60A Home Load / 33.4A Power Station |
Max Input Short-Circuit | 10KA |
Overvoltage Category | IV |
Main Circuit | 2 AWG |
Branch Circuit | 14 AWG / 12 AWG / 10 AWG |
